Description et caractéristiques

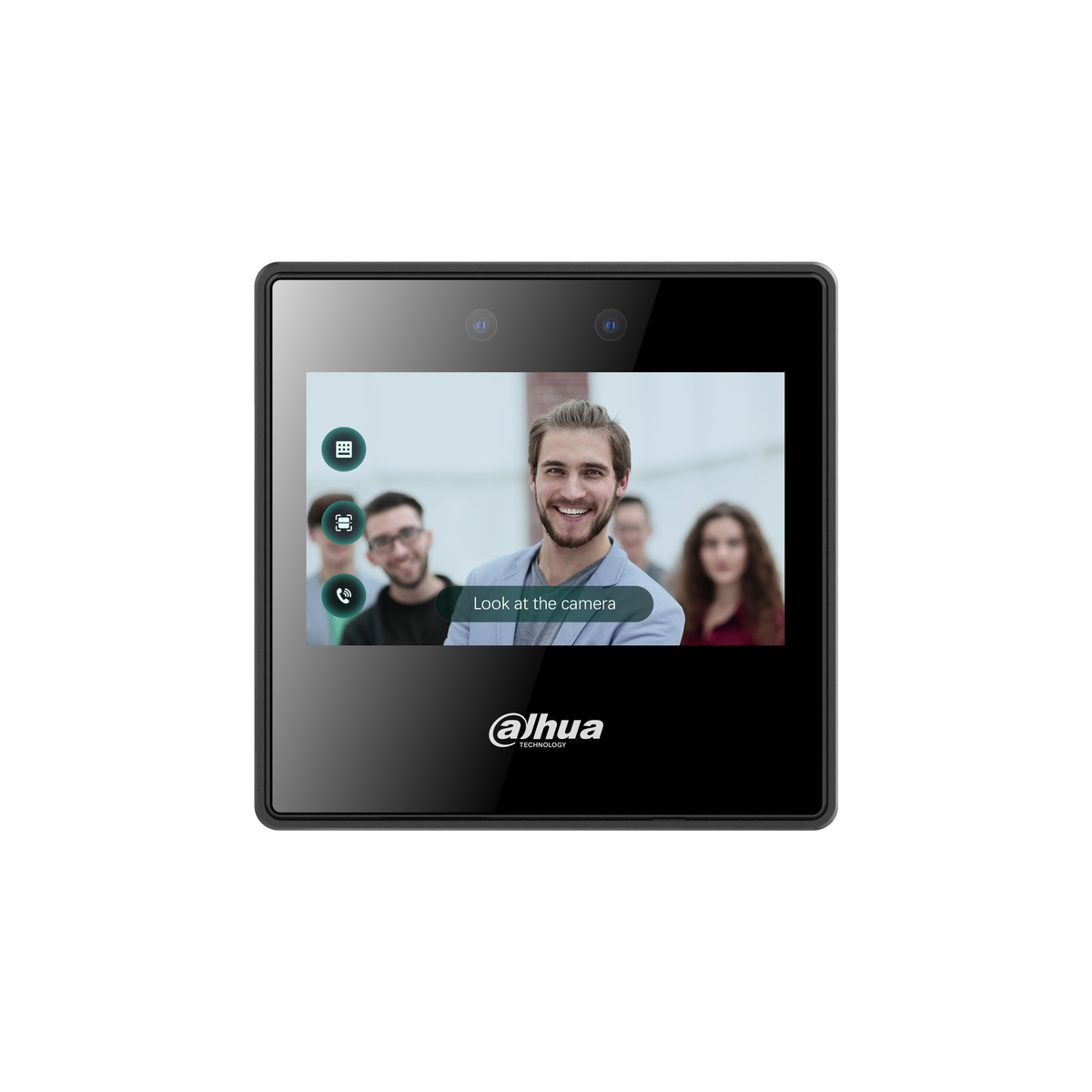

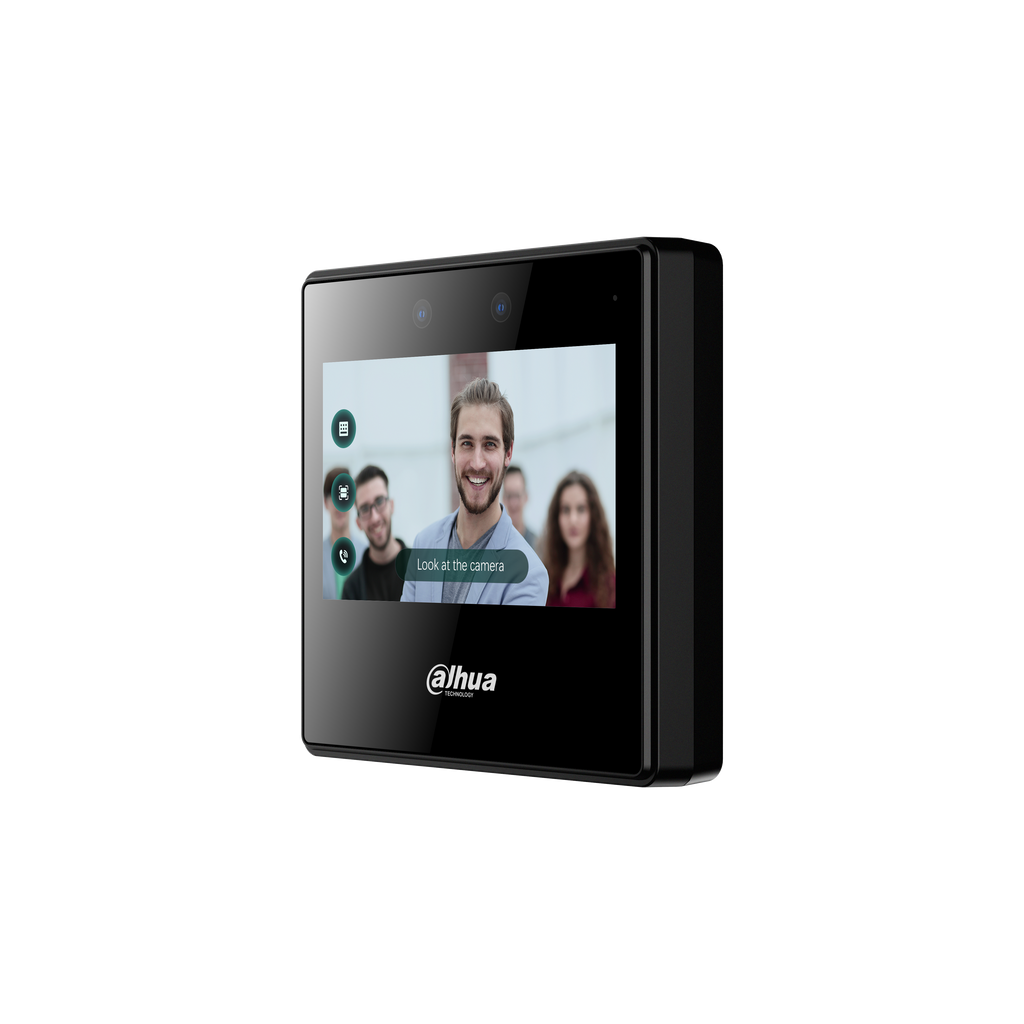

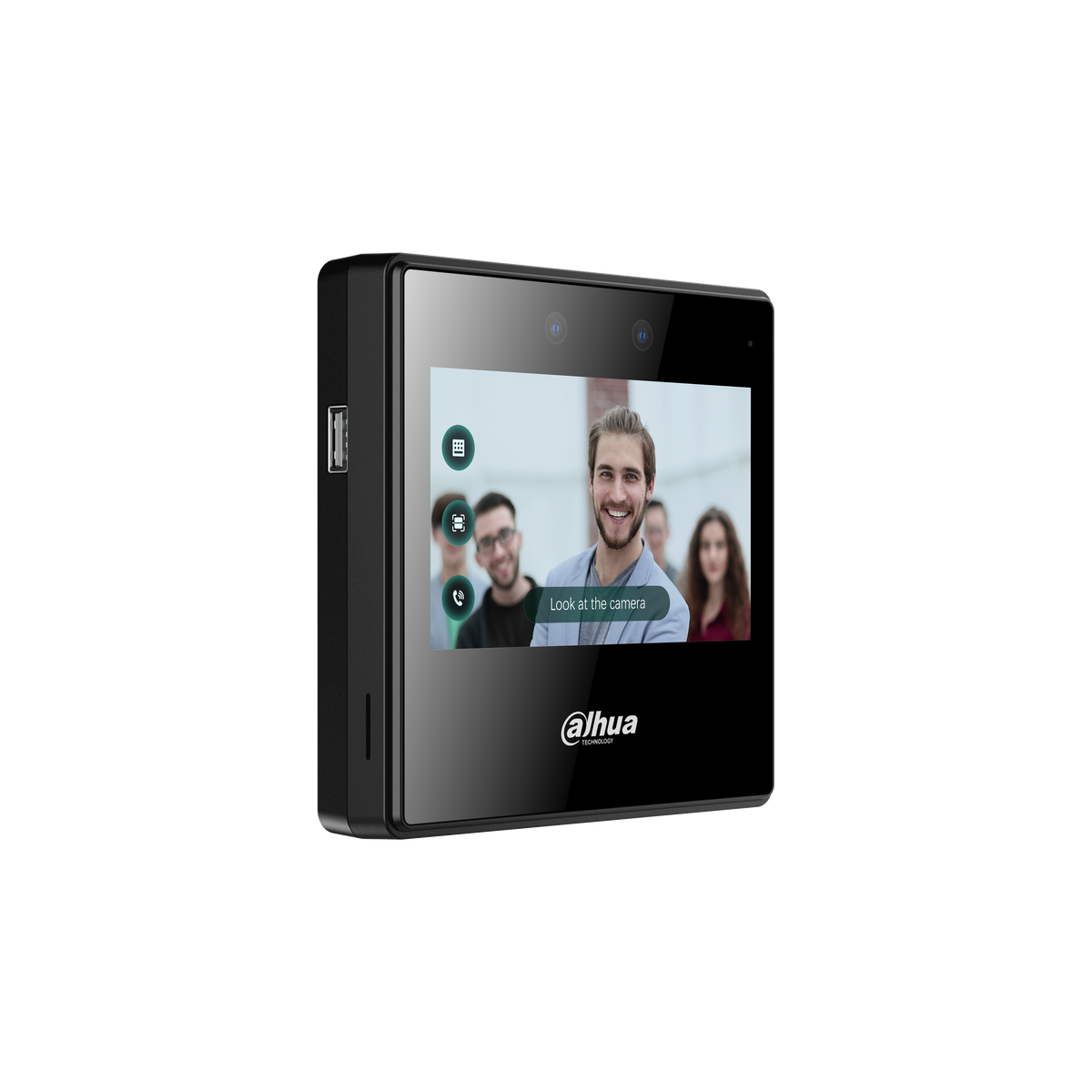

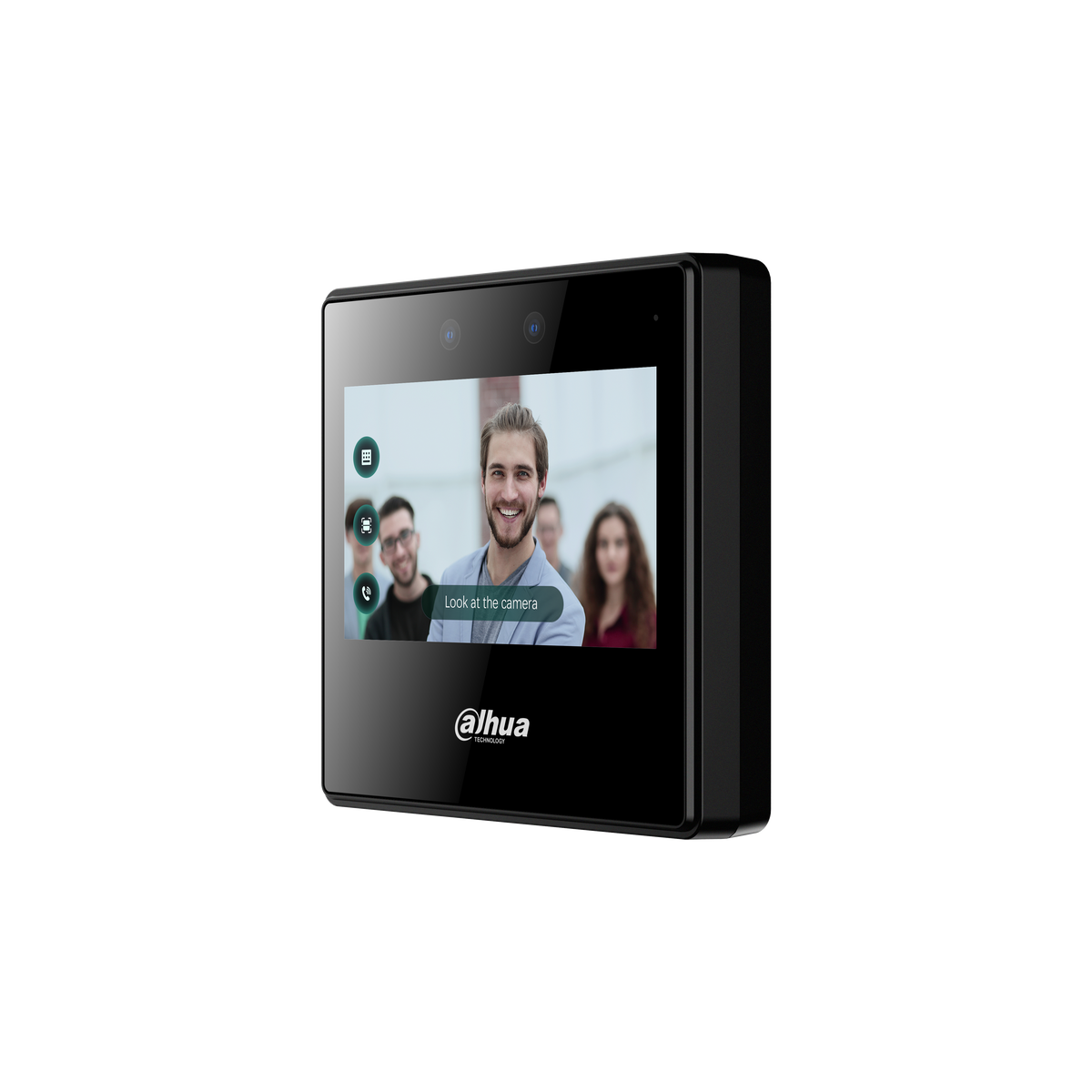

Contrôle d'accès autonome IP noir
- 2 MP
- Reconnaissance faciale 0.3-1.5 m
- Détection de masque
- QR Code
- Écran tactile 4.3"
- Journal 300 000 événements
- Digicode
- Sortie bouton poussoir
- Entrée capteur de porte
- Wiegand
- RS-485
- OSDP
- Audio bidirectionnel
- 12V
Caractéristiques principales
- Type d'accès : Digicode, Reconnaissance faciale, QR Code
- Type de protocole : RS-485, OSDP, Wiegand
- Nombre de portes : 1 porte
- Alimentation : Alimentation 12V
Fiche technique
| Processeur | Embedded Processor |
|---|---|
| Protocoles réseau | IPv4;RTSP;RTP;TCP;UDP;SIP;P2P |
| OSDP Protocol | Yes |
| Interopérabilité | ONVIF;CGI |
| SDK and API | Yes |
| Product Type | Standalone |
| Display Screen | 4.3" LCD |
| Screen Type | Capacitive Touchscreen |
| Screen Resolution | 480 (H) × 272 (V) |
| Camera | 2-MP CMOS HD dual-lens camera |
| WDR | DWDR |
| Light Compensation | Auto IR |
| Voice Prompt | Yes |
| Casing | PC + ABS |
| Unlock Mode | Password, remote, face and combination unlock |
| Period List | 128 periods |
| Holiday Period | 128 periods |
| Network Update | Yes |
| First User Unlock | Yes |
| Remote Verification | Yes |
| Restricted List/Trusted List | Yes |
| Peripheral Card Reader | 1 × RS–485 card reader; 1 × Wiegand card reader |
| Multi-user Authentication | Yes |
| Real-time Monitoring | Yes |
| Web Configuration | Yes |
| Auto Registration | Yes |
| Face Recognition Height Range | 1.1 m– 2.0 m (3.61 ft–6.56 ft) |
| Face Recognition Distance | 0.3 m–1.5 m (0.98 ft–4.92 ft) |
| Face Recognition Accuracy | 99.9% |
| Face Recognition Time | 0.2 s |
| Read Speed (QR Code ) | 500 ms |
| Code Type | Paper; Electronic |
| User (Card) Type | Normal user; VIP users; patrol users; guest user; blocklist user; other user |
| User Capacity | 2,000 |
| Face Image Capacity | 2,000 |
| Password Capacity | 2,000 |
| Record Capacity | 300,000 |
| RS-485 | 1 |
| Wiegand | 1 |
| USB | 1 × USB 2.0 |
| Port réseau | 1 × RJ-45 10/100 Mbps self-adaptive Ethernet port |
| Exit Button | 1 |
| Lock Control | 1 |
| Door Status Detection | 1 |
| Anti-pass Back | Yes |
| Tamper Alarm | Yes |
| Duress Alarm | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Power Adapter | Standard |
| Alimentation | 12 VDC, 1.5 A |
| Consommation | ≤18 W |
| Dimensions | 115.0 mm × 118.0 mm × 27.1 mm (4.53" × 4.65" × 1.07") (H × W × W) |
| Packaging Dimensions | 190 mm × 179 mm × 127 mm (7.48" × 4.65" × 5.00") (L × W × H, protection box) |
| Température de fonctionnement | –10 °C to +40 °C (+14 °F to +104 °F) |
| Humidité de fonctionnement | 0%–90% (RH), non-condensing |
| Operating Environment | Indoor |
| Poids net | 250 g (0.55 lb) |
| Poids brut | 400 g (0.88 lb) |

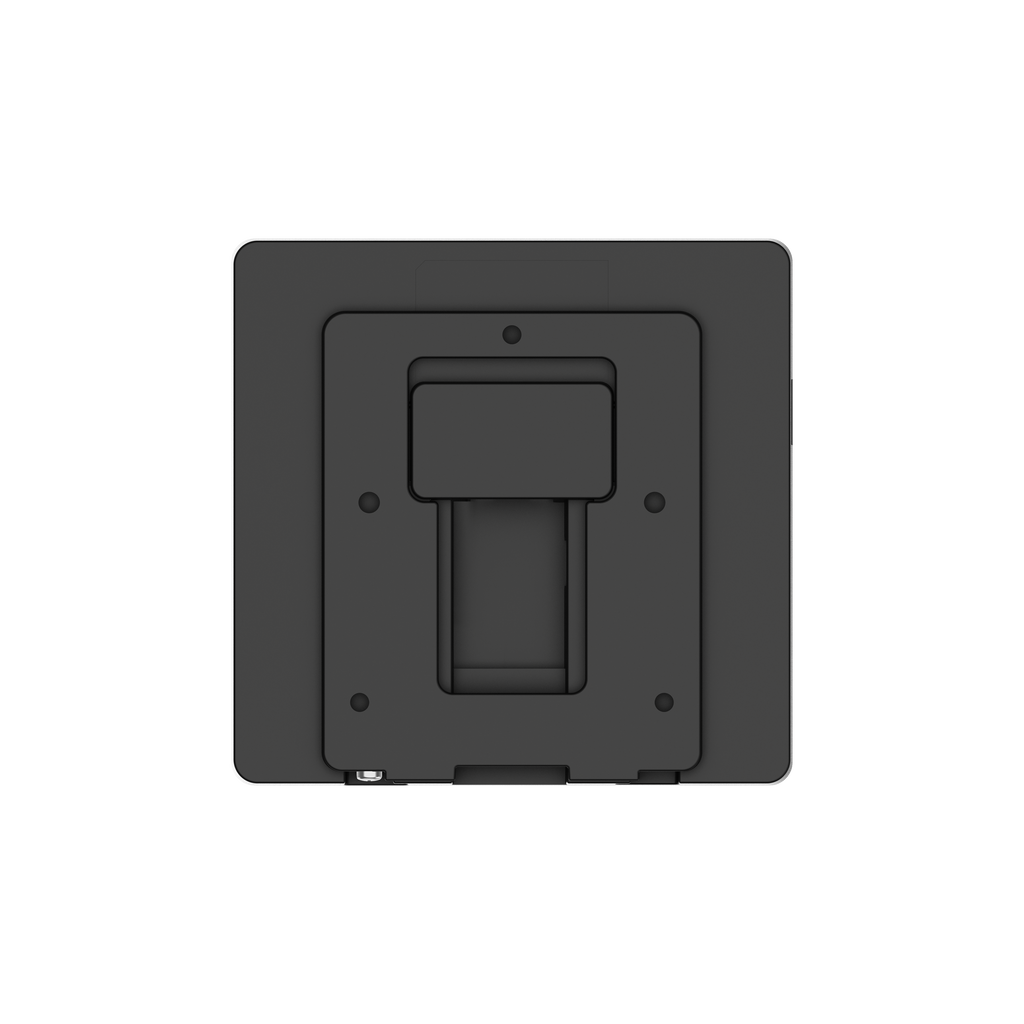

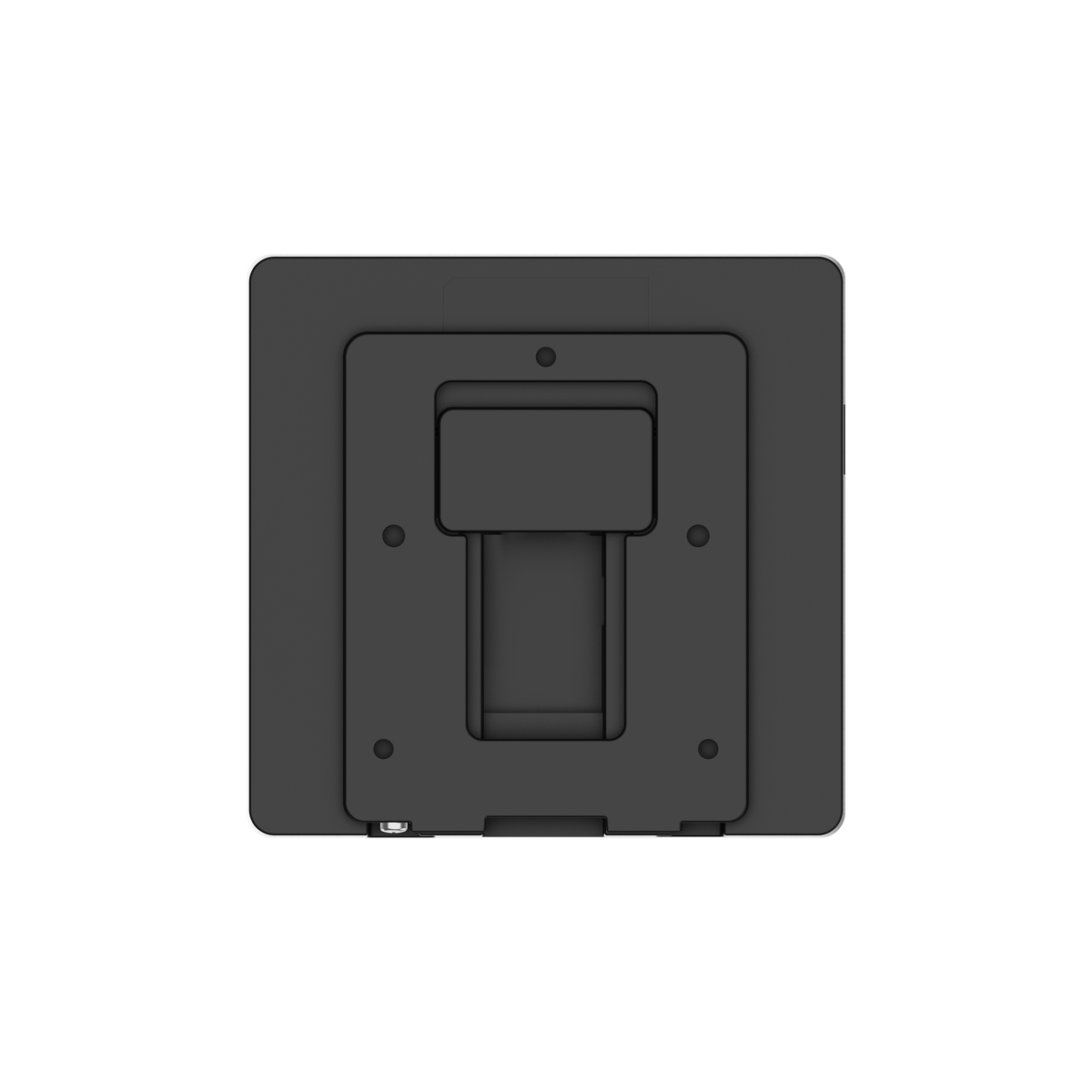

| Accessory | Wall mount bracket (included) |
| Installation | Wall; 86 case mount; Desk Mount |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : ASI3223A · Marque : Dahua
