Description et caractéristiques

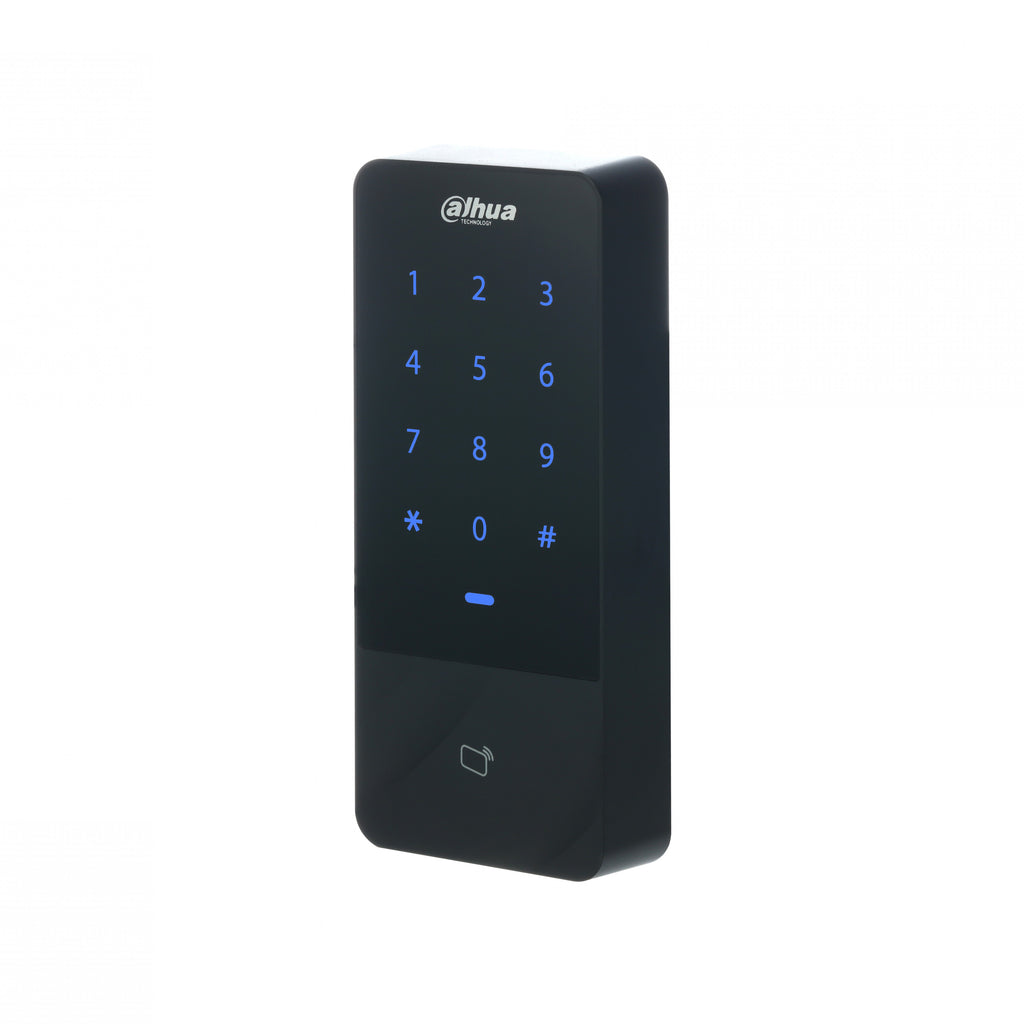

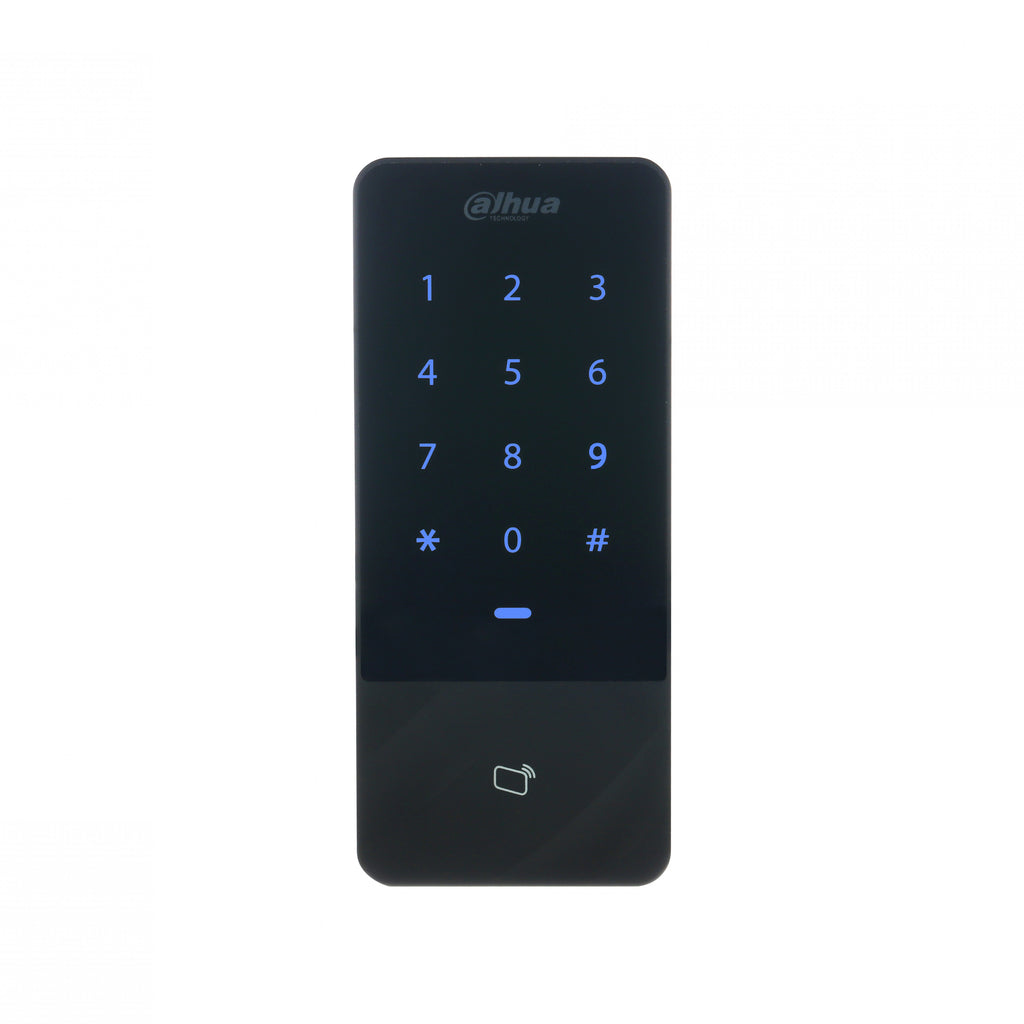

Clavier autonome RFID étanche IP66
- Communication IP
- Lecteur Mifare 13,56
- Protocole RS-485 ou WIEGAND
- Jusqu’à 30 000 Cartes / 60 000 événements
Caractéristiques principales
- Type de produit : Lecteur + Clavier
- Type de protocole : RS-485, Wiegand
- Type d'accès : Mifare
- Protection : IP65
- Couleur : Noir
Fiche technique
| Processeur | Embedded Processor |
|---|---|
| Button Type | Touch button |
| Protocoles réseau | TCP/IP |
| OSDP Protocol | Yes |
| Product Type | Standalone |
| Buzzer | Yes |
| Backlight | Yes |
| Matériau du boîtier | PC |
| Verification Method | Card;Password;Remote |
| Period List | 128 groups |
| Holiday Period | 128 groups |
| Network Update | Yes |
| First User Unlock | Yes |
| Remote Verification | Yes |
| Peripheral Card Reader | Includes 1-channel RS-485 card reader and 1-channel Wiegand card reader |
| Issuing Card by Master Card | Yes |
| Multi-user Authentication | Yes |
| Auto Registration | Yes |
| Card Type | IC card |
| Card Reading Distance | 0 mm–60 mm (0"–2.36") |
| User (Card) Type | Normal user |
| User Capacity | 30,000 |
| Card Capacity | 30000 |
| Password Capacity | 30,500 (Includes 30,000 user passwords and 500 public passwords) |
| Record Capacity | 60000 |
| RS-485 | 1 |
| Wiegand | 1 (Wiegand input is 26, 34 or 66 bits self-adaptive; Wiegand output is 34 bits by default.) |
| Port réseau | 1-channel 10/100 Mbps Ethernet port |
| Exit Button | 1 channel |
| Door Status Detection | 1 channel |
| Lock Control | 1 channel |
| Power Output Port | 1 channel |
| Anti-pass Back | Yes |
| Tamper Alarm | Yes |
| Duress Alarm | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding Threshold | Yes |
| Power Adapter | Optional |
| Alimentation | DC 12 V 1 A (The access standalone does not supply power to the lock.) DC 12 V 2 A (The access standalone supplies power to the lock. The current of the lock can only reach up to 1 A. If it exceeds, the current will be distributed based on the actual amount of current.) |
| Indice de protection | IP66 |
| Consommation | ≤12 W (When the access standalone does not supply power to the lock, the power is ≤12W. When it does supply power to the lock, it is calculated based on the actual amount of power of the lock.) |
| Dimensions | 142 mm × 62 mm × 23 mm (5.59" × 2.44" × 0.91") (H× W × D) |
| Packaging Dimensions | 195 mm × 135 mm × 56 mm (7.68" × 5.31" × 2.20") (H × W × D) |
| Transport Package Dimensions | 604 mm × 290 mm × 314 mm (23.78" × 11.42" × 12.36") (H× W × D) |
| Température de fonctionnement | –30 °C to +60 °C (–22 °F to +140 °F) |
| Humidité de fonctionnement | 0%–90% (RH), non-condensing |
| Operating Altitude | 0 m–1,300 m (0 ft–4265.09 ft) |
| Operating Environment | Outdoor |
| Poids brut | 244 g (0.54 lb) |
| Installation | Surface Mount |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : ASI1201E-V1 · Marque : Dahua
