Description et caractéristiques

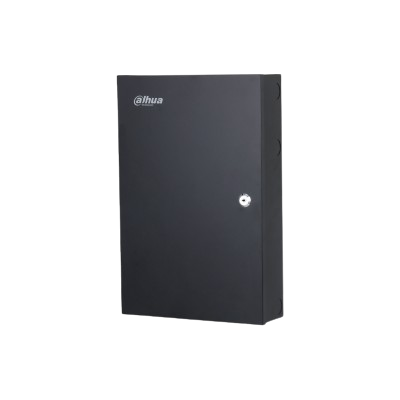

Contrôleur d’accès IP
- 4 portes bidirectionnelles
- Lecteurs Wiegand & RS-485 x16
- Multi-authentification (carte, code, QR, empreinte)
- 100 000 utilisateurs
- Anti-passback
- Alarmes
- Alimente 4 gâches et 8 lecteurs
- Montage mural
- ONVIF C
- 100-240V / DC 12V
Caractéristiques principales
- Type de produit : Centrales
- Type de protocole : RS-485, Wiegand, OSDP
- Nombre de portes : 4 portes
- Alimentation : Alimentation 12V, Alimentation 240V
Fiche technique
| Processeur | Embedded Processor |
|---|---|
| Protocoles réseau | IPv4;UDP;P2P;IPv6;TCP |
| OSDP Protocol | Yes |
| Interopérabilité | ONVIF PROFILE C |
| SDK | Yes |
| API | Yes |
| Product Type | Iron Case Access Controller |
| Buzzer | Yes |
| Matériau du boîtier | SGCC galvanized |
| Verification Method | Card;Password;Fingerprint;Remote;QR Code |
| Period List | 128 groups |
| Holiday Period | 128 groups |
| Network Update | Yes |
| First User Unlock | Yes |
| Remote Verification | Yes |
| Restricted List/Trusted List | Yes |
| Peripheral Card Reader | Supports 8-channel RS-485 card readers and 8-channel Wiegand card readers. |
| Multi-door Interlock | Yes |
| Multi-user Authentication | Yes |
| Real-time Monitoring | Yes |
| Multi-factor Authentication | Yes |
| Web Configuration | Yes |
| Unidirectional or Bidirectional | Bidirectional |
| User (Card) Type | General user, VIP user, patrol user, guest user, blocklist user, other users, custom user 1 and custom user 2 |
| User Capacity | 100,000 |
| Fingerprint Capacity | 10,000 |
| Card Capacity | 100,000 |
| Record Capacity | 500,000 |
| RS-485 | 9 ports. 8 for card readers, and the remaining 1 is for the extension port. |
| Wiegand | 8-channel input |
| Port réseau | 1 RJ-45, 10 Mbps/100 Mbps self-adaptive |
| Entrée d'alarme | 5 channels. Channel 1 is for connecting to the heat alarm. Channels 2–3 support alarms for different events. There are 4 statuses for these channels: Normal, alarm, short circuit and open circuit. Channels 4–5 are standard alarm input channels. Expandable to 8 channels when connected to an external alarm module. |
| Sortie d'alarme | 4 channels; expandable to 8 channels when connected to an external alarm module. |
| Alarm Linkage | Yes |
| Exit Button | 4 channels |
| Door Status Detection | 4 channels |
| Lock Control | 4 channels |
| Anti-pass Back | Yes |
| Tamper Alarm | Yes |
| Duress Alarm | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding Threshold | Yes |
| Duress Fingerprint | Yes |
| Alimentation | Switching power supply (AC to DC, AC 100–240 V, 4 A; 12 VDC, 12.5 A) |
| Consommation | ≤ 3 W; it might alter if other devices are connected |
| Dimensions | 397.6 mm × 262.6 mm × 82.8 mm (15.65" × 10.34" × 3.26") (L × W × H) |
| Packaging Dimensions | 473 mm × 353 mm × 162 mm (18.62" × 13.9" × 6.38") (L × W × H) (1 in inner carton) |
| Température de fonctionnement | –30 °C to +60 °C (–22 °F to +140 °F) |
| Humidité de fonctionnement | 5%–95% (RH), non-condensing |
| Operating Environment | Indoor |
| Poids brut | 4.0 kg (8.82 lb) |
| Installation | Surface Mount |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : ASC4204C-D · Marque : Dahua
