Description et caractéristiques
Communication TCP/IP.
- Deux protocoles de communication : RS-485 et Wiegand.
- Prend en charge le stockage de 100 000 utilisateurs et 500 000 enregistrements de balayage de carte.
Caractéristiques principales
- Type de produit : Coffret
- Type de protocole : RS-485
Fiche technique
| Processeur | Embedded processor |
|---|---|
| Internet Protocol | IPv4; TCP; UDP |
| OSDP Protocol | Yes |
| SDK | Yes |
| Product Appearance | Type C Iron Container |
| Buzzer | Yes |
| Matériau du boîtier | SECC steel board |
| Unlock Mode | Card swiping; Remote; Password; Fingerprint |
| Period List | 128 |
| Holiday Period | 128 |
| Network Update | Yes |
| First-Card Unlock | Yes |
| Remote Verification | Yes |
| Blocklist/Allowlist | Yes |
| Peripheral Card Reader | 4-Channel RS-485 card reader 4-Channel Wiegand card reader |
| Multi-door Interlock | Yes |
| Group Combination | Card swiping; password; fingerprint |
| Real-Time Surveillance | Yes |
| Multiple Authentication | Yes |
| User (Card) Type | General user; VIP user; patrol user; guest user; blocklist user; other user |
| User | 100,000 |
| Fingerprint | 3,000 |
| Card | 100,000 |
| Record Capacity | 500,000 |
| RS-485 Port | 5 × RS-485 ports |
| Wiegand | 4 × Wiegand ports |
| Network | 1 × 10/100 Mbps Ethernet port |
| Entrée d'alarme | 6 (digital quantity) |
| Sortie d'alarme | 4 (relay) |
| Alarm Linkage | Yes |
| Exit Button | 4 |
| Door Status Detection | 4 |
| Lock Control | 4 channels, NO by default |
| Anti-Passback | Yes |
| Tamper | Yes |
| Duress | Yes |
| Door Unlock Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding Threshold | Yes |
| Duress Fingerprint | Yes |
| Alimentation | 100-240 V AC |
| IP Rating | IP20; Ik04 |
| Consommation | ≤ 0.8 W (standby), ≤ 39.6 W (working) |
| Dimensions | 337 mm × 272 mm × 90 mm (13.27”× 10.71”× 3.54") (H × W × D) |
| Packaging Dimensions | 472 mm × 352 mm × 163 mm (18.58" × 13.86" × 6.42") (H × W × D) (one product in an inner carton) |
| Température de fonctionnement | –30°C to +60°C (-22 °F to +140 °F) |
| Humidité de fonctionnement | 5%–95% RH (non-condensing) |
| Operating Environment | Indoor |
| Poids brut | 3.5 kg (7.72 lb) |
| Installation | Surface mount |
| Certification | CE; FCC; UL |
📄 Télécharger la fiche technique (PDF)

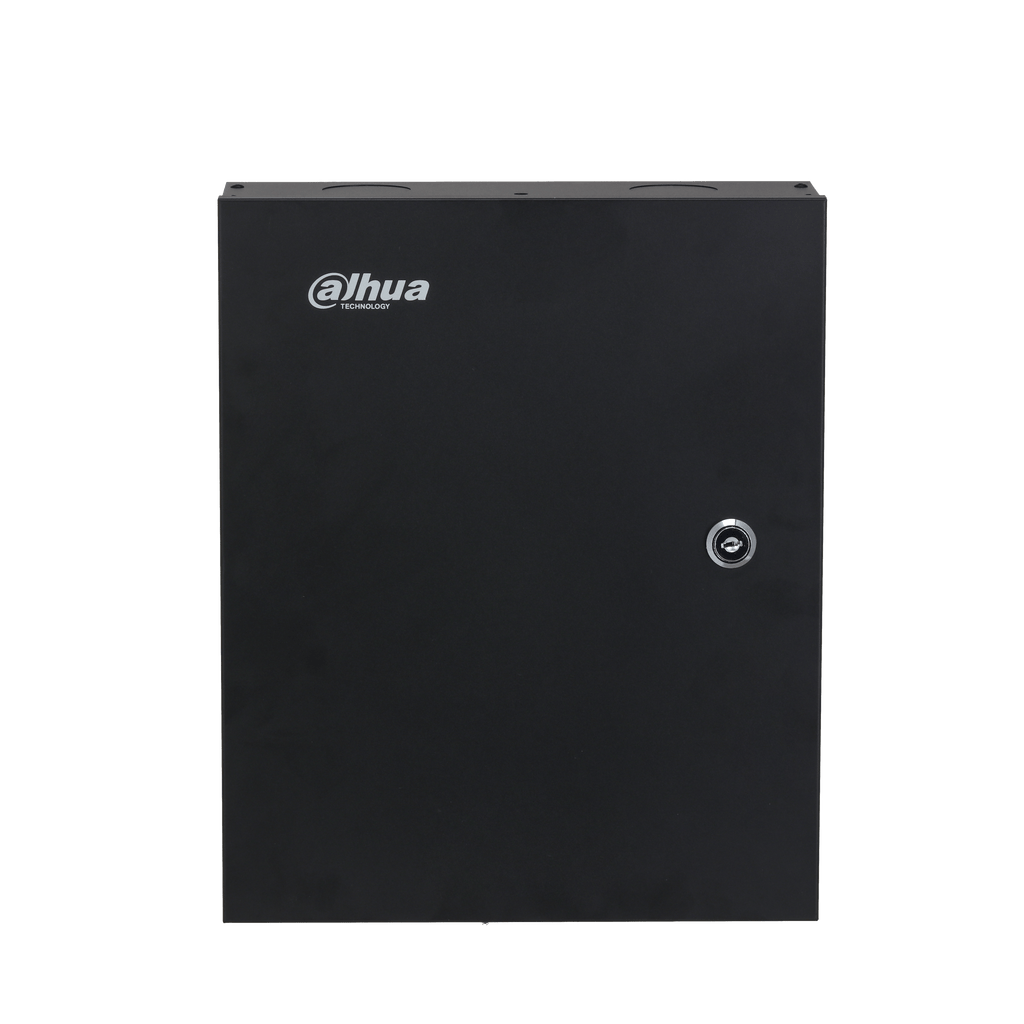

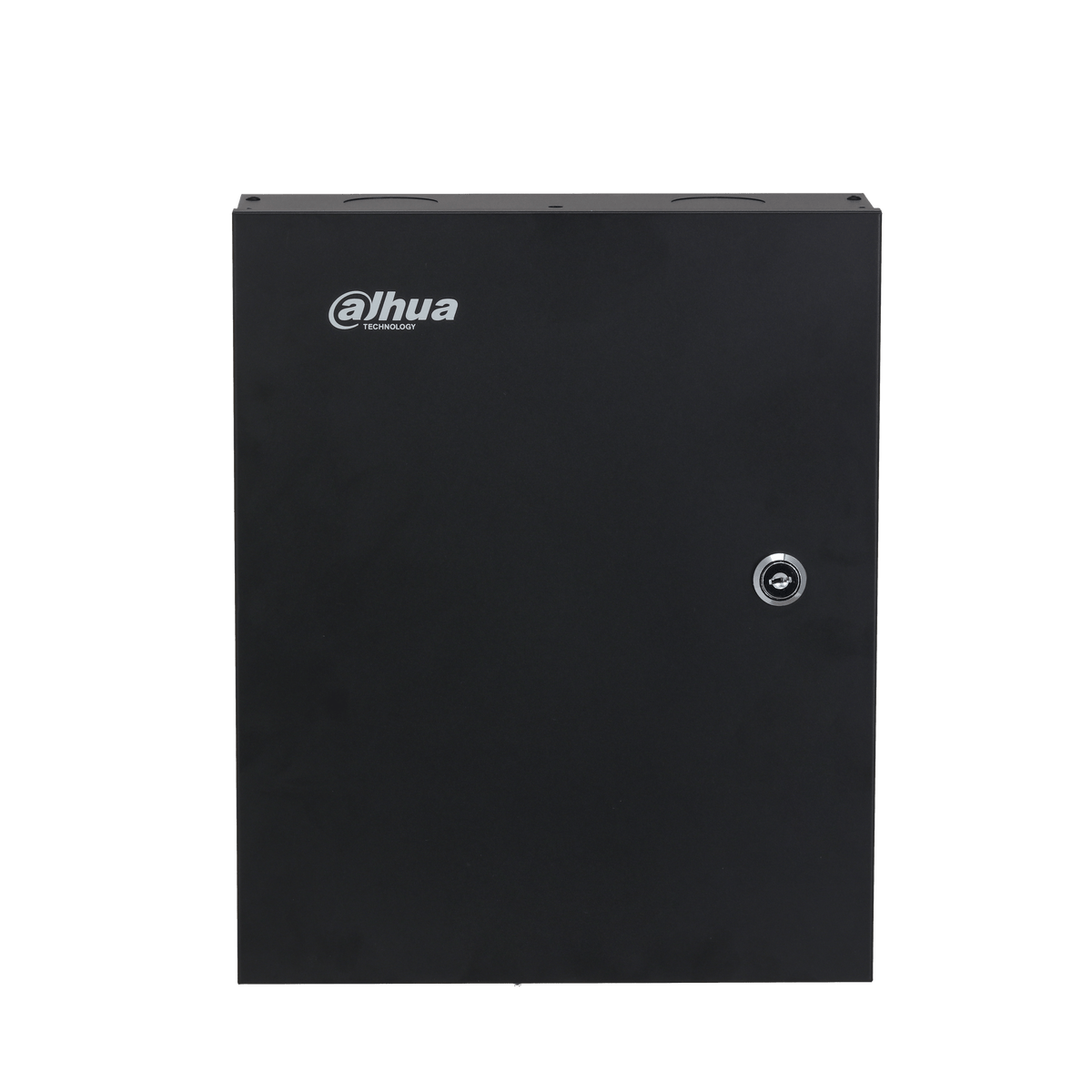

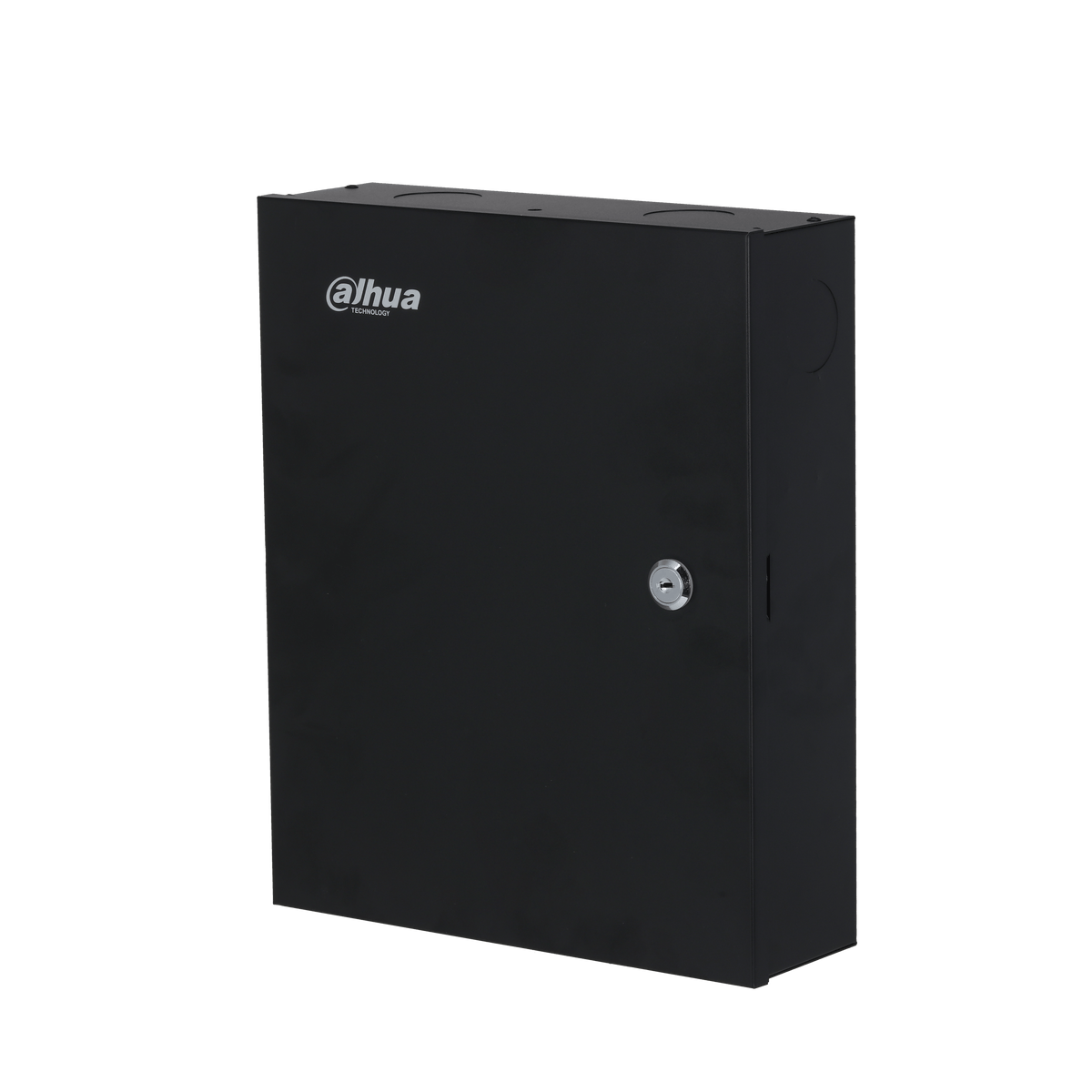

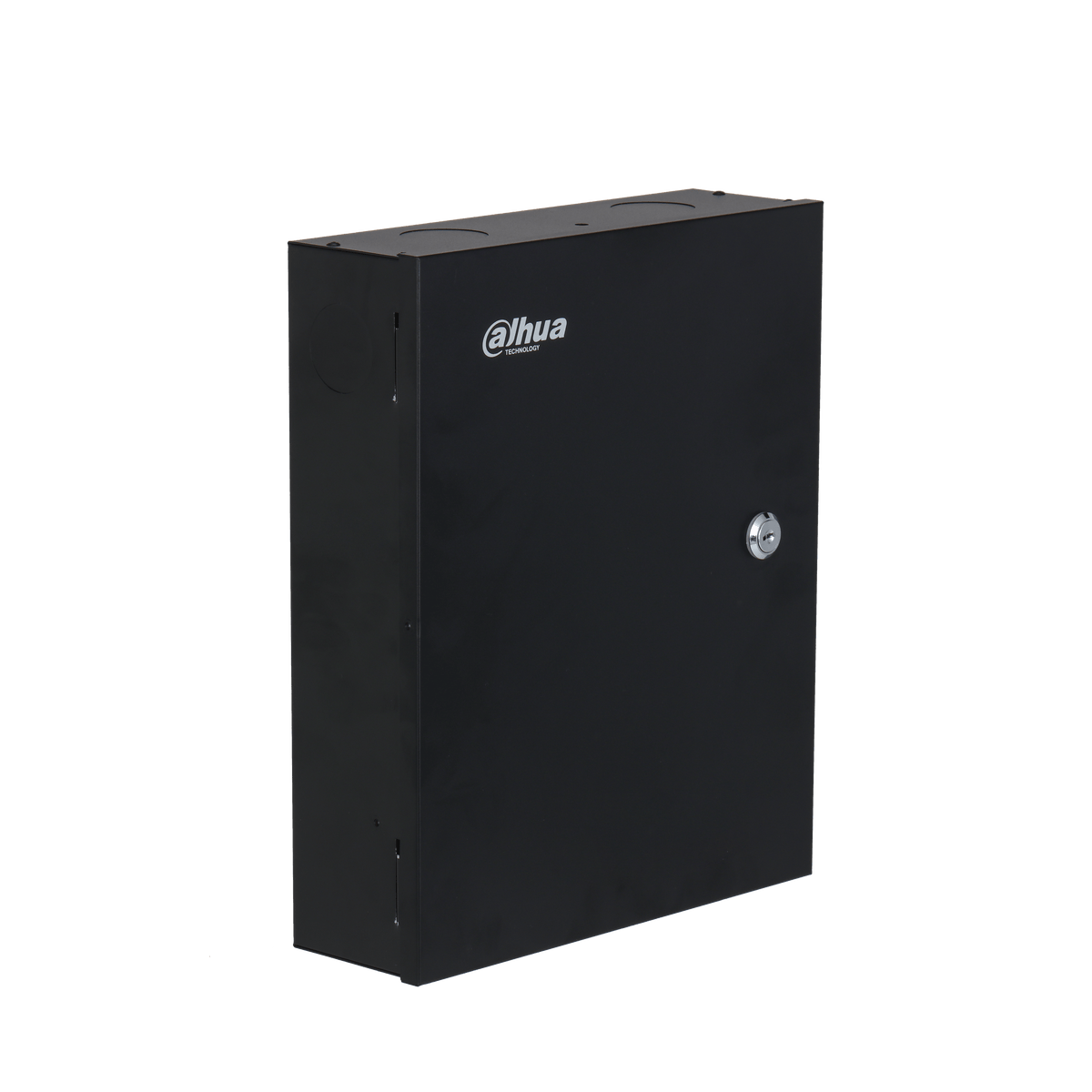

Référence fabricant : ASC2204C-S · Marque : Dahua
