Description et caractéristiques

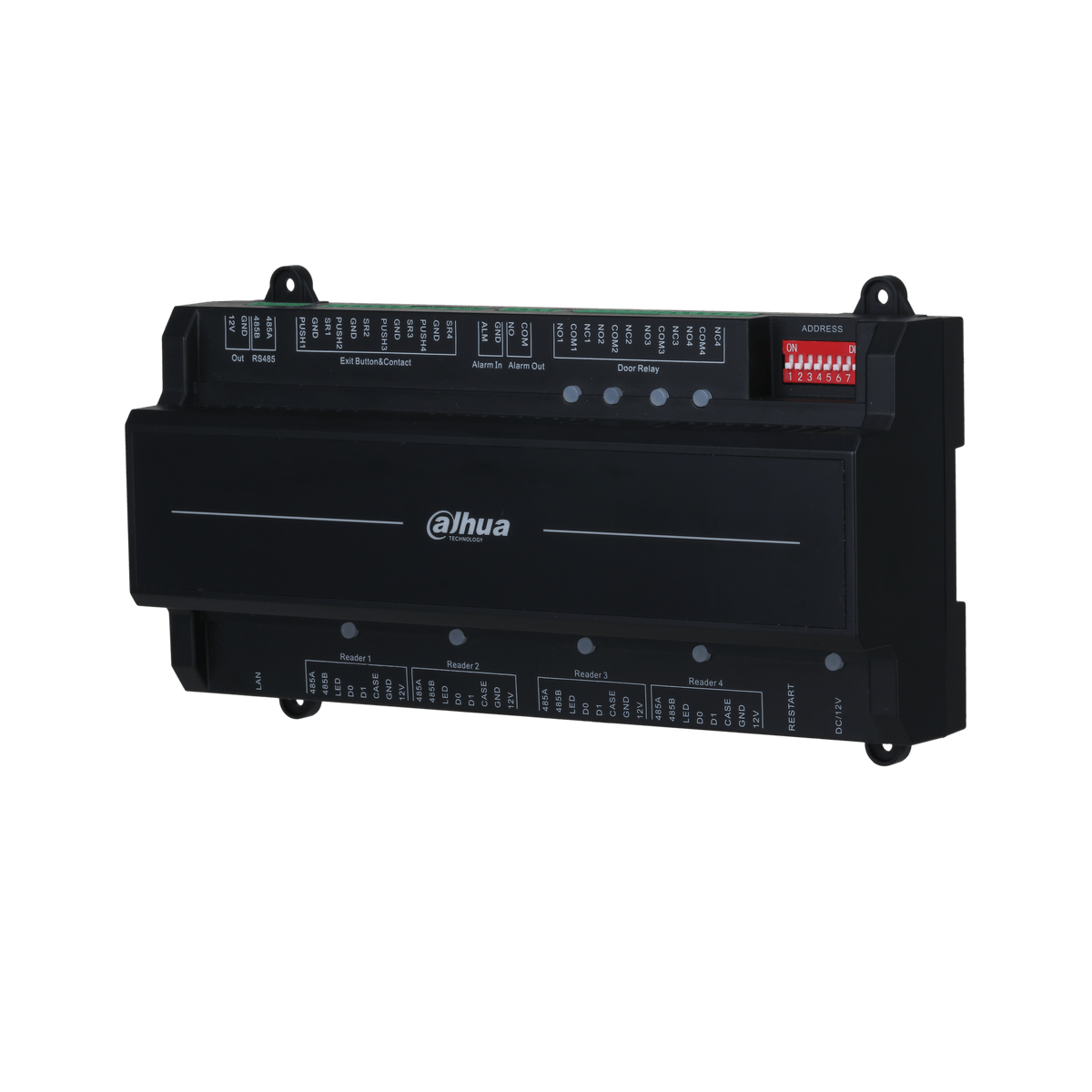

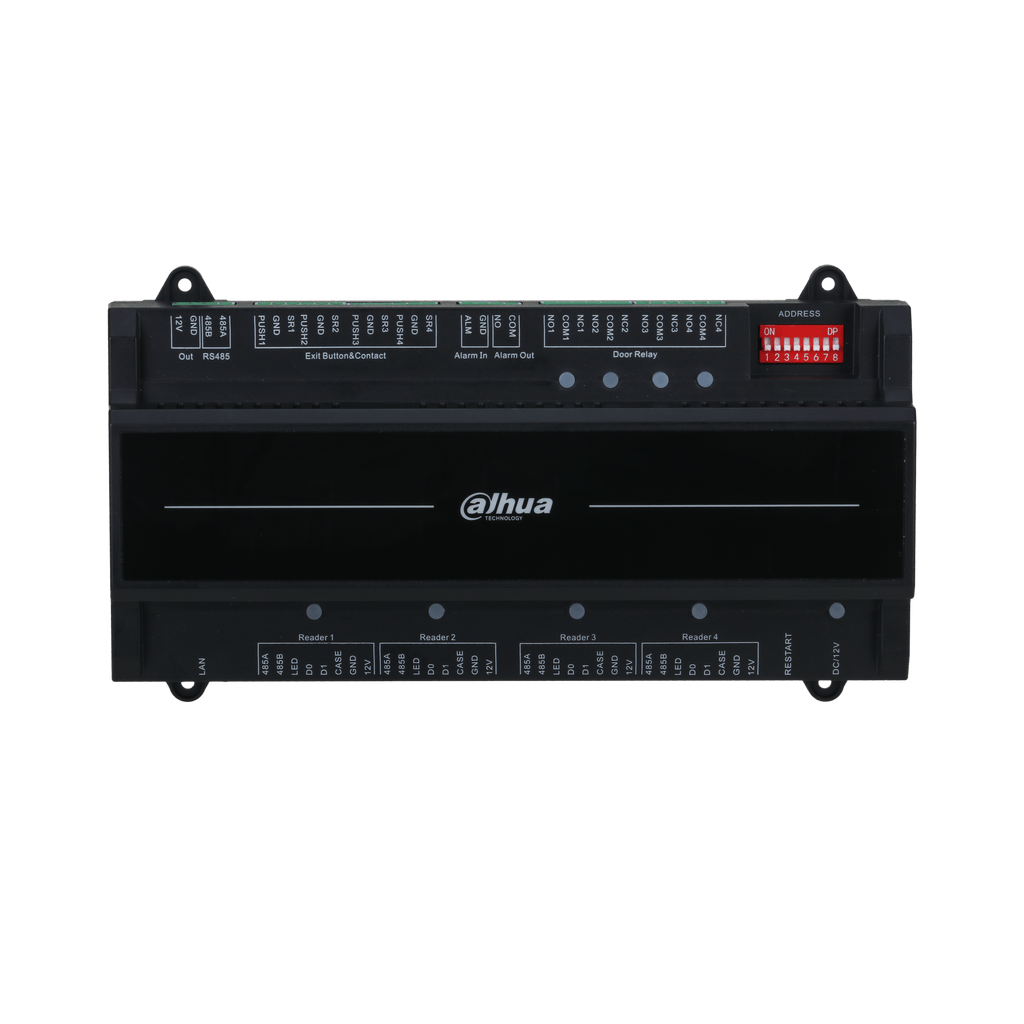

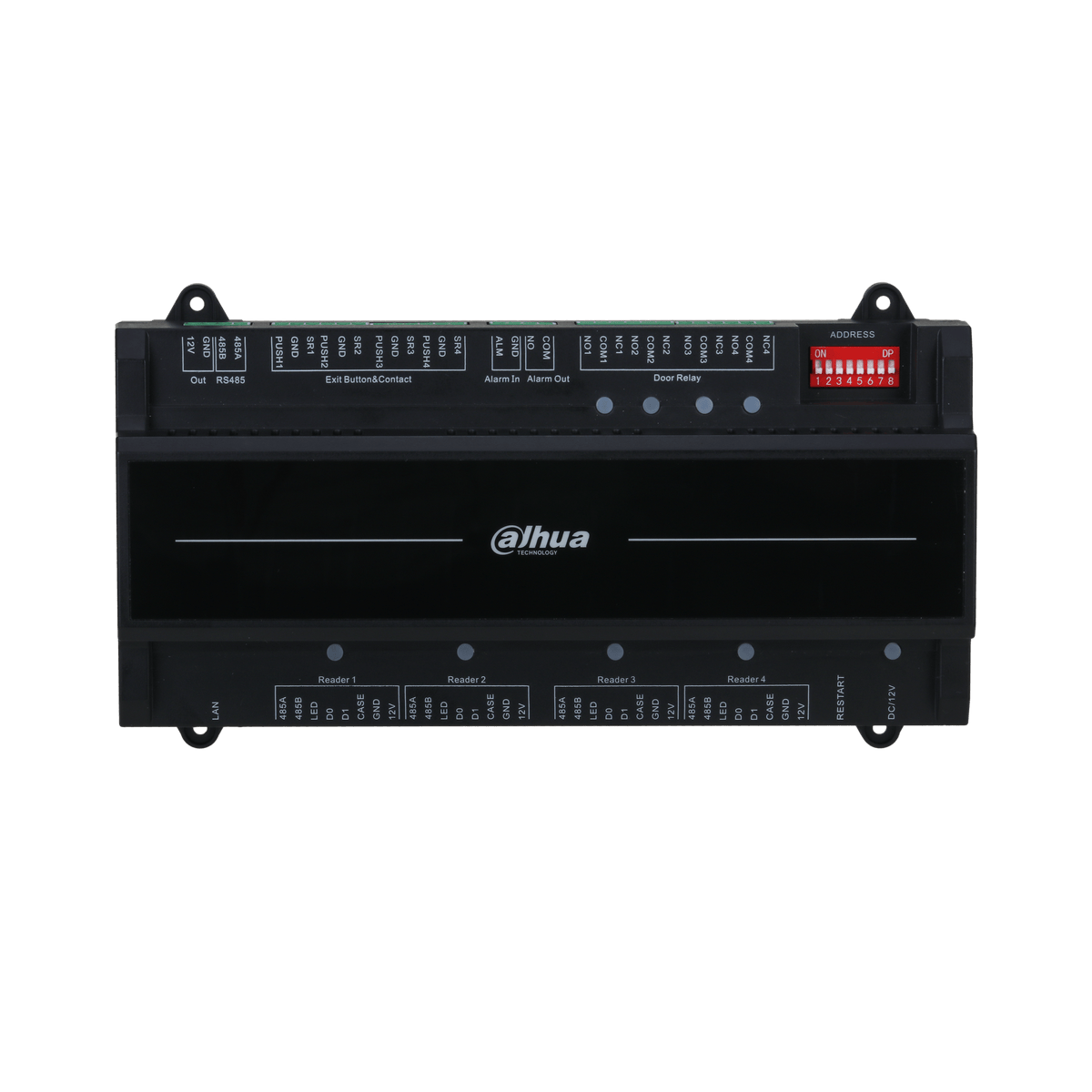

Centrale contrôle d'accès
- RS-485 et Wiegand (W26/34)
- Communication bi-directionnelle
- Intérieur
- 12 V POE
- IP20
- IK04
Caractéristiques principales
- Type de produit : Centrales
- Type de protocole : RS-485, Wiegand
- Alimentation : Alimentation 12V, Alimentation POE
Fiche technique
| Internet Protocol | IPv4; TCP; UDP |
|---|---|
| OSDP Protocol | Yes |
| SDK | Yes |
| Product Appearance | Model B slide rail |
| Buzzer | Yes |
| Matériau du boîtier | PC+ABS |
| Unlock Mode | Card/remote/password/fingerprint unlock |
| Period List | 128 |
| Holiday Period | 128 |
| Network Update | Yes |
| First-Card Unlock | Yes |
| Remote Verification | Yes |
| Blocklist/Allowlist | Yes |
| Peripheral Card Reader | 4 RS-485 card readers 4 Wiegand card readers |
| Multi-door Interlock | Yes |
| Group Combination | Card/password/fingerprint unlock |
| Real-Time Surveillance | Yes |
| Multiple Authentication | Yes |
| User (Card) Type | General user, VIP user, patrol user, guest user, blocklist user, and other user |
| User | 100,000 |
| Fingerprint | 3,000 |
| Card | 100,000 |
| Record Capacity | 500,000 |
| RS-485 Port | 5 RS-485 ports |
| Wiegand | 4 Wiegand ports |
| Network | One 10/100 Mbps network port |
| Entrée d'alarme | 1 (digital quantity) |
| Sortie d'alarme | 1 (relay) |
| Alarm Linkage | Yes |
| Exit Button | 4 |
| Door Status Detection | 4 |
| Lock Control | 4, stays open by default |
| Anti-Passback | Yes |
| Tamper | Yes |
| Duress | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding Threshold | Yes |
| Duress Fingerprint | Yes |
| Alimentation | Standard POE (an additional power supply for the door lock is needed); DC 12V (support supplying power to the door lock) |
| IP Rating | IP20, IK04 |
| Consommation | Standby 1.0W, working 13.0W (Standard PoE; rated voltage of the card reader power supply is 12V, and the total max. rated current is 1.4A); Standby 0.8W, working 41.6W (DC 12V; rated voltage of the card reader power supply is 12V, and the total max. rated current is 1.4A; rated voltage of the door lock power supply is 12V, and the total max. rated current is 2A) |
| Dimensions | 210 mm × 106 mm × 50 mm (8.27”× 4.17”× 1.97”) |
| Packaging Dimensions | Packaging box: 255 mm × 166 mm × 87 mm (10.04”× 6.54”× 3.43”) Protective box: 508 mm × 265 mm × 190 mm (20.0”× 10.43”× 7.48”) |
| Température de fonctionnement | –30°C to +60°C (–22°F to +140°F) |
| Humidité de fonctionnement | 5%RH–90%RH (no condensation) |
| Operating Altitude | 0 m–1300 m (0 ft–4265.10 ft) |
| Operating Environment | Indoor |
| Poids brut | 0.6 kg (1.33 lb) |
| Installation | Surface/guide rail mount |
| Certification | CE/FCC/UL |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : ASC2204B-S · Marque : Dahua
