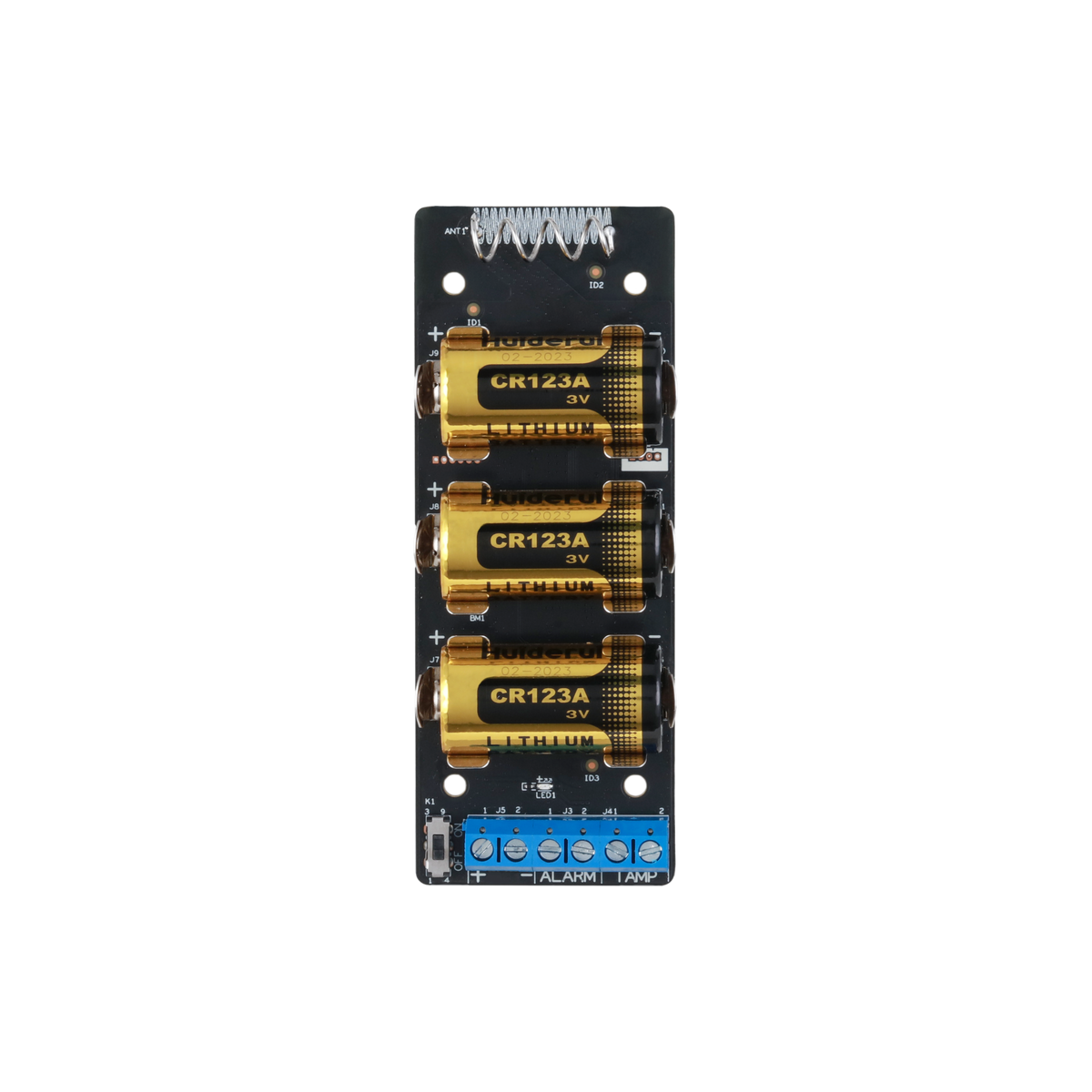

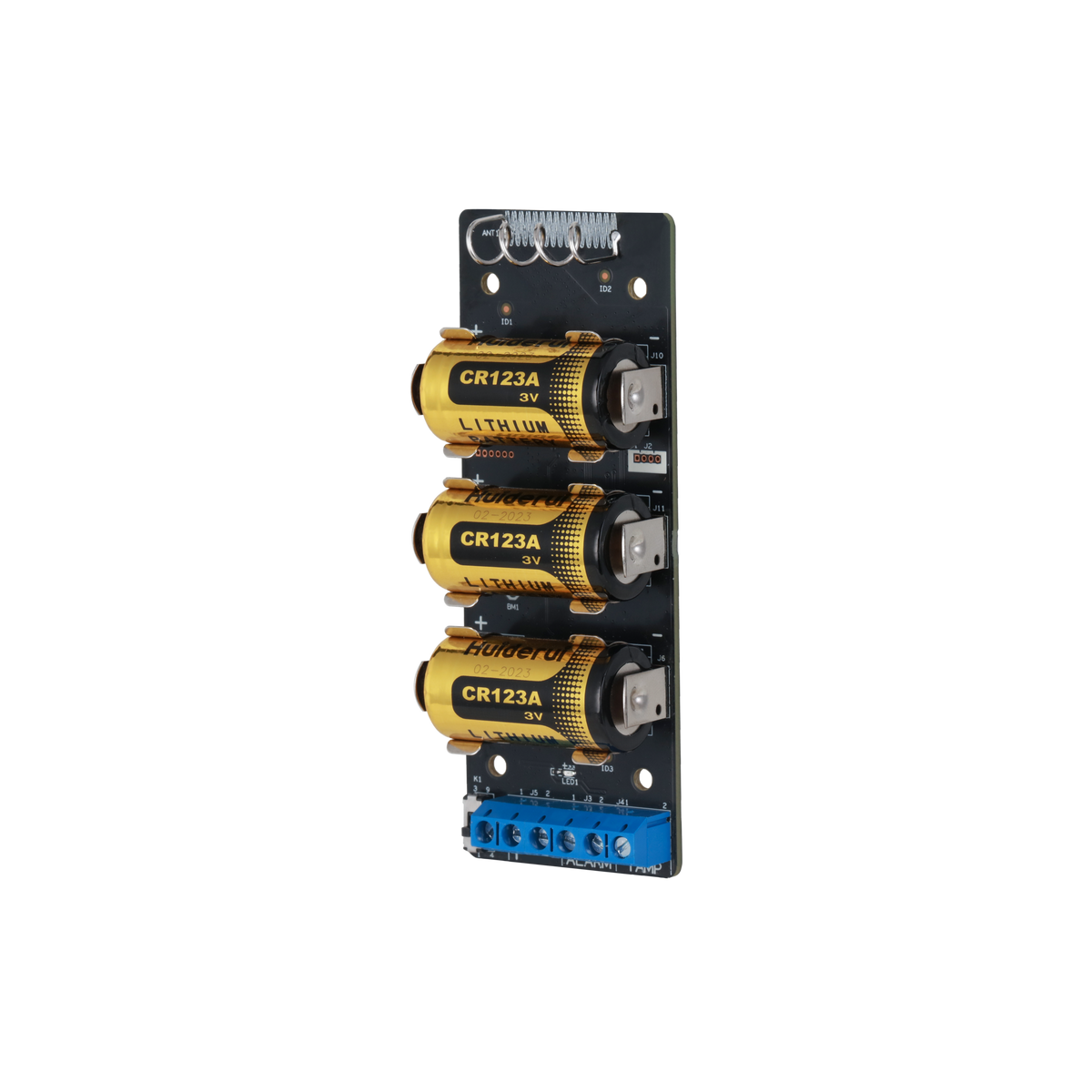

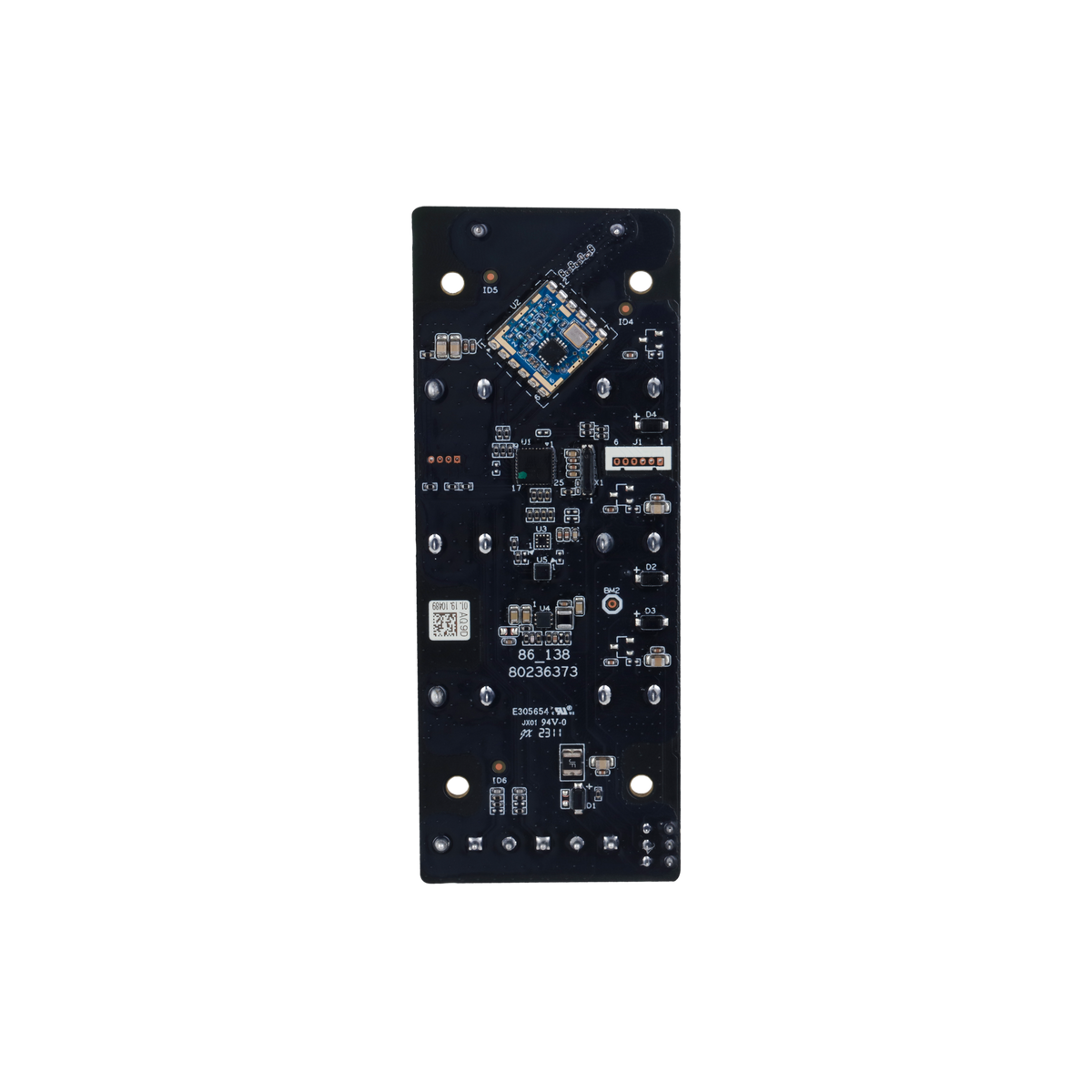

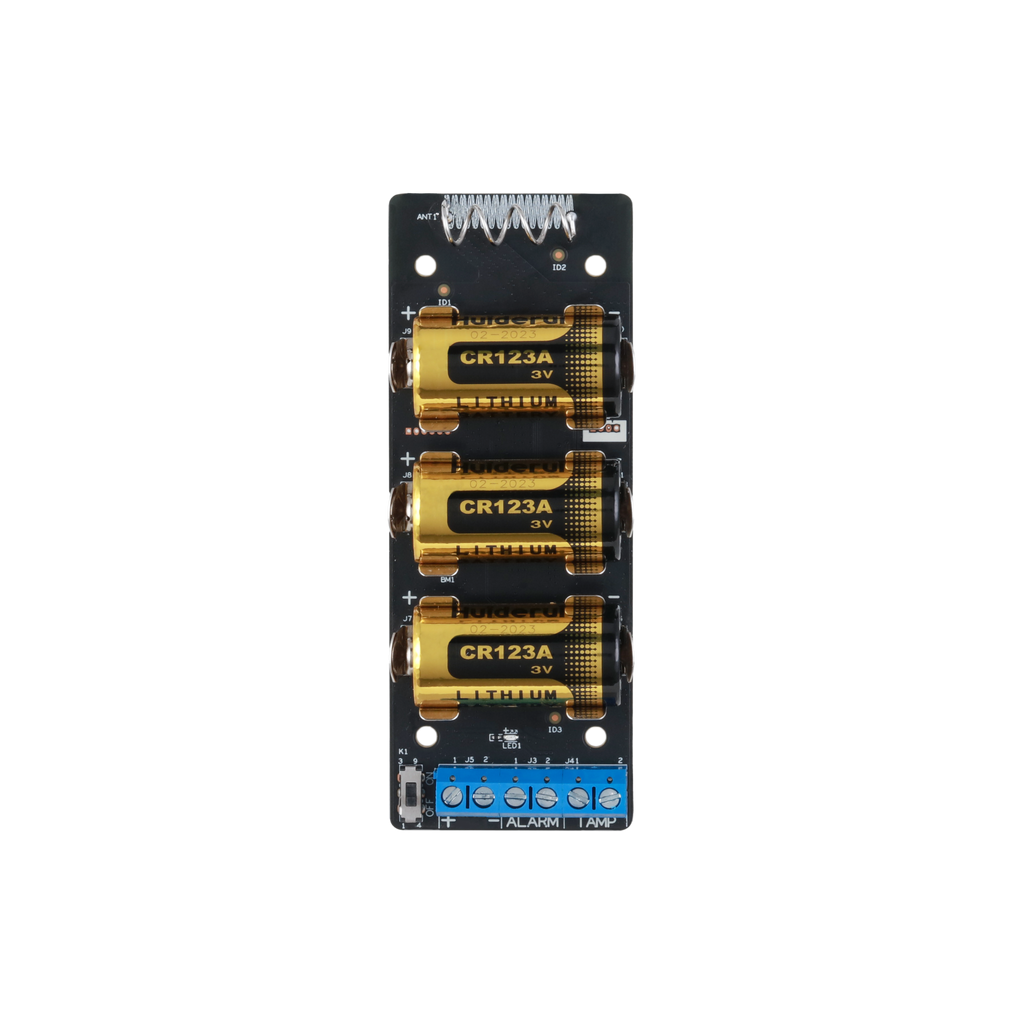

Description et caractéristiques
Module d'extension de zone
- 3.3 V
- Noir
Caractéristiques principales
- Type de produit : Module d'extension de zone
- Alimentation : Alimentation 3.3V
- Couleur : Noir
Fiche technique
| Entrée d'alarme | 2 (1 for alarm and 1 for anti-tampering) |
|---|---|
| Auxiliary Power Output | 3.3 V, up to 10 mA |
| Button | 1 × power button |
| Remote Update | Cloud update |
| Low Battery Detection | Yes |
| Tamper | Yes |
| Measuring Range (Temperature) | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Sensor | Triaxial accelerometer |
| LED Indicator | 1 × green alarm indicator |
| Scenario | Indoor |
| Operating Current | 45 uA (with 1 min heartbeat, normally open mode, charge not being provided for other devices and device moved alarm not enabled) |
| Alarm Current | 50 mA |
| Carrier Frequency | 868.0 MHz–868.6 MHz |
| Transmitter Power (EIRP) | Limit 25 mW |
| Communication Mechanism | Two-way |
| Communication Distance | Up to 1600 m (5249.34 ft) in an open space |
| Encryption Mode | AES128 |
| Frequency Hopping | Yes |
| Alimentation | 3 × CR123A battery |
| Battery Model | CR123A |
| Battery Life | 5 years (4 years if the external input type is pulse) |
| Consommation | Max. 150 mW (without providing charge for other devices) |
| Température de fonctionnement | –10 °C to +55 °C (+14 °F to +131 °F) (indoor) |
| Humidité de fonctionnement | 10%–90% (RH) |
| Dimensions | 102 mm × 39 mm × 21.5 mm (4.02" × 1.54" × 0.85") |
| Poids net | 77 g (0.17 lb) |
| Poids brut | 135 g (0.30 lb) |
| Installation | Surface mount, or mount inside a third-party device |
| Certifications | CE EN 50131-1:2006+A1:2009+A2:2017+A3:2020 EN 50131-3:2009 EN 50131-6:2017+A1:2021 EN 50131-5-3:2017 Security Grade 2 Environmental Class II |
| Niveau anticorrosion | Basic Protection |
| Packaging Dimensions | 95 mm × 43 mm × 139 mm (3.74" × 1.69" × 5.47") |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : ARM320-W2(868) · Marque : Dahua
