Description et caractéristiques

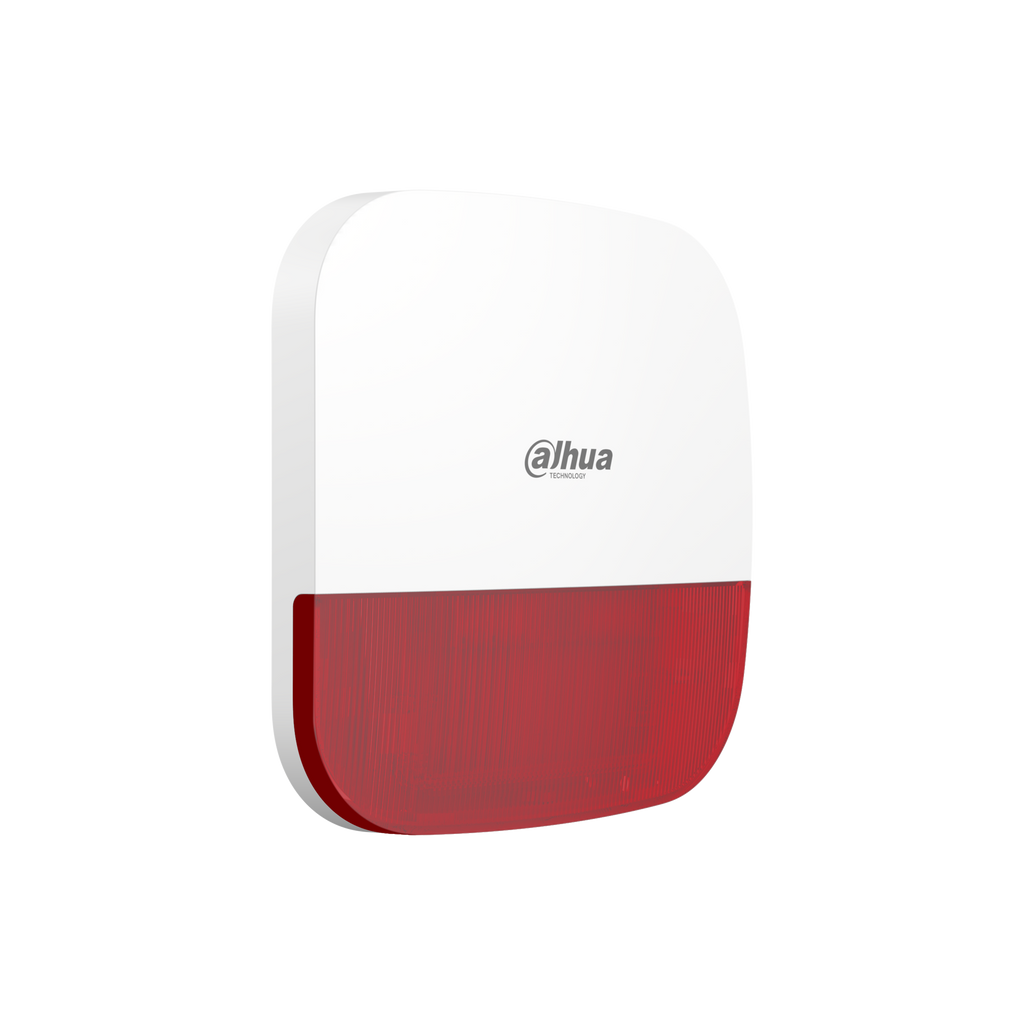

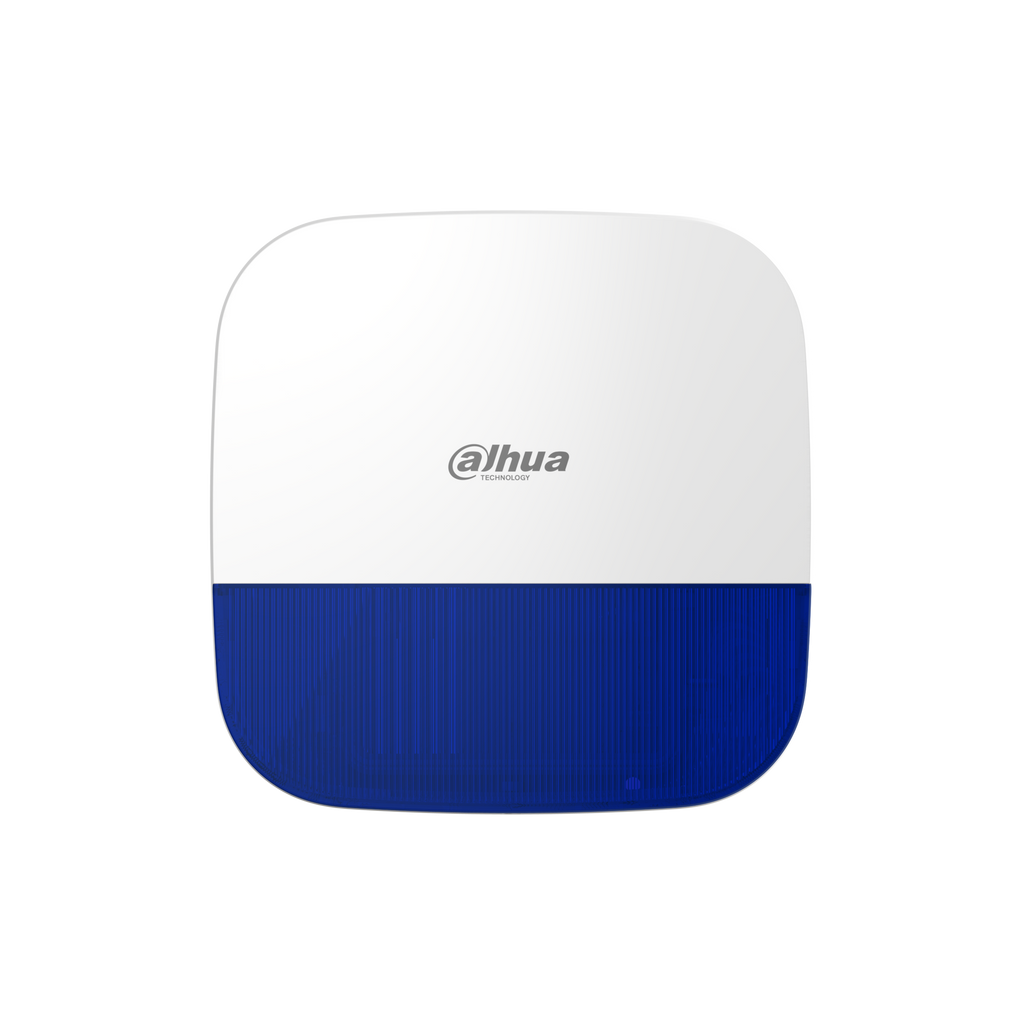

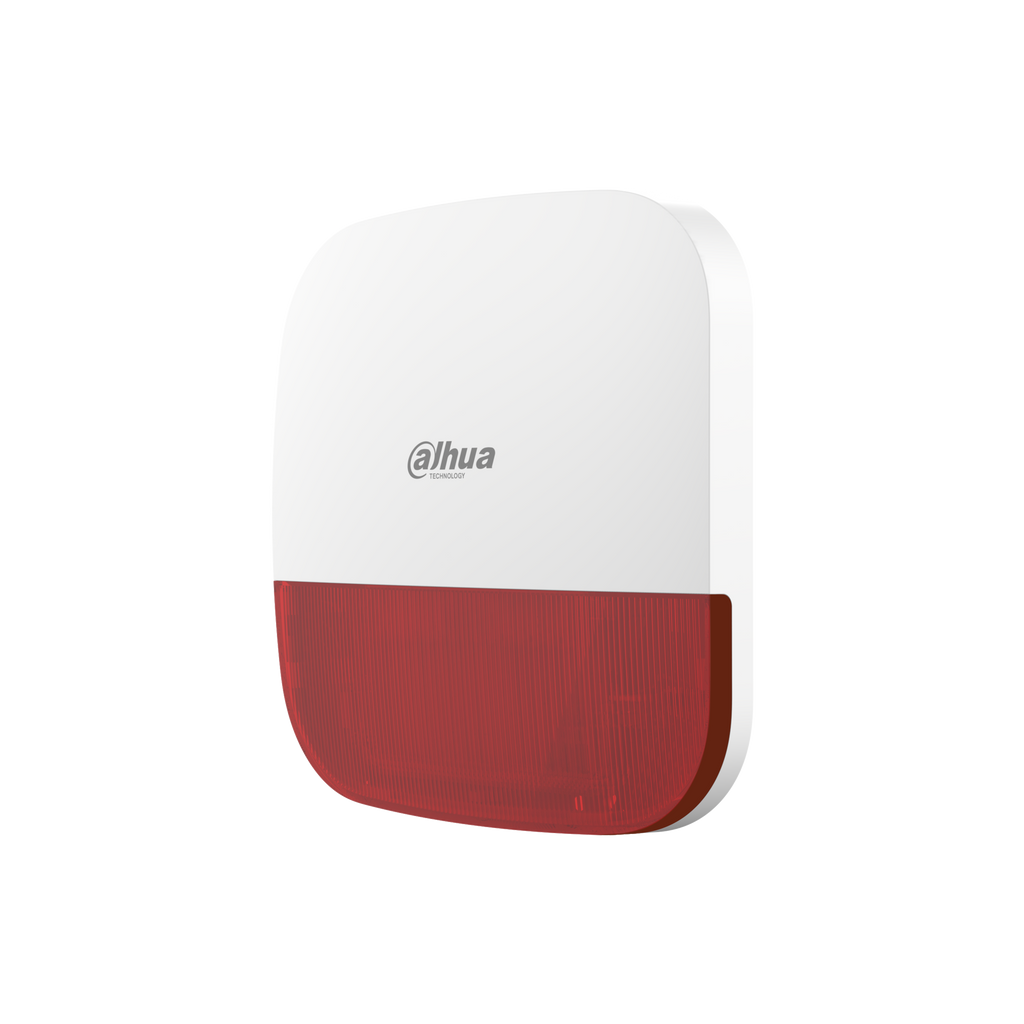

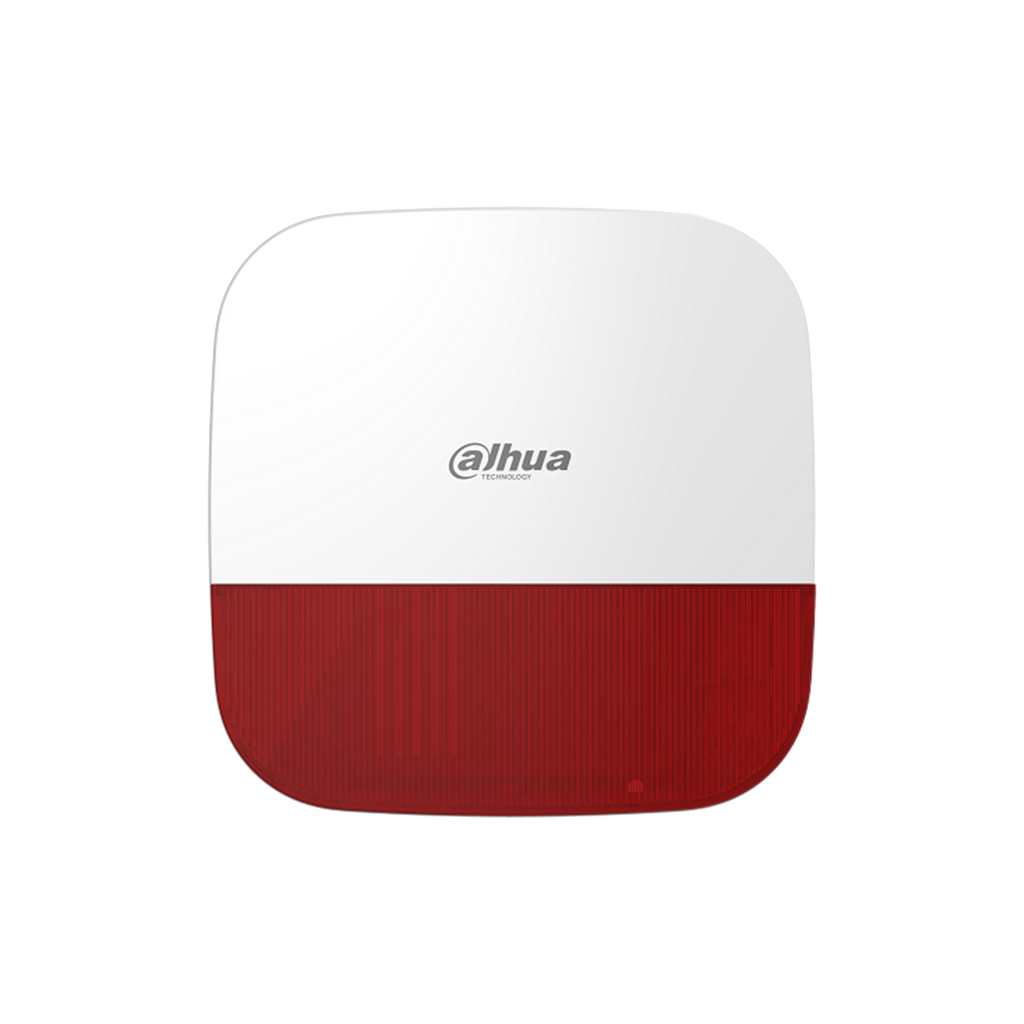

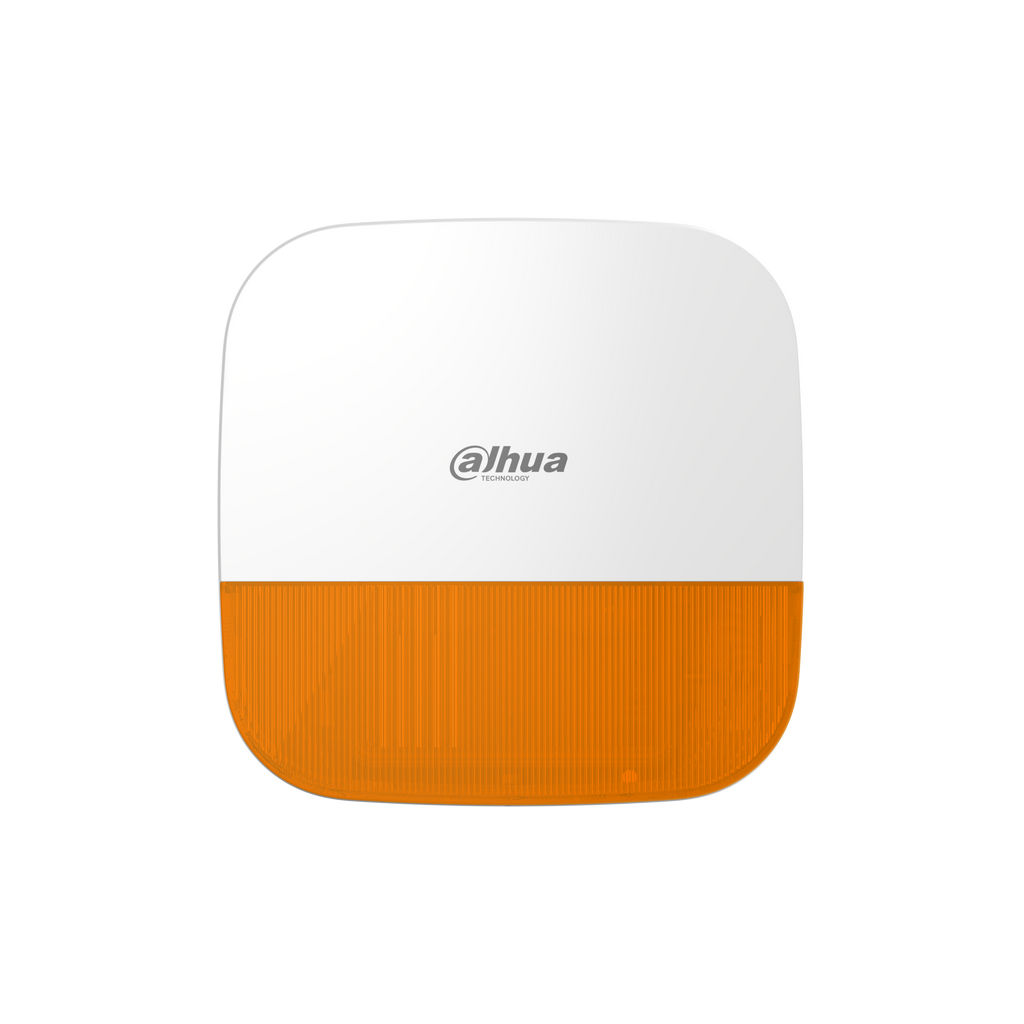

Sirène extérieure sans fil
- IP65
- 110dB
- 12 VDC et batterie
- distance de communication: Jusqu'à 1600m
- Plusieurs sons d'alarme : incendie, médical, intrusion, panique, etc.
Caractéristiques principales
- Type de périphérique : Sirène
- Puissance acoustique : 110 dB
- Type de raccordement : Raccordement radio
- Fonctionnalités : Flash
- Couleur : Périphérique alarme blanc
Fiche technique
| Indicator Light | 1 × green alarm indicator 12 × alarm LED groups |
|---|---|
| Button | 1 × power switch |
| Buzzer | 1 × buzzer |
| Remote Update | Cloud update |
| Low Battery Detection | Yes |
| Tamper | Yes |
| Scenario | Outdoor/Indoor |
| Operating Current | 1.4 A (Max), 92 uA (Standby) (Battery 3V); 1 A (Max), 7.3mA (Standby) (DC 12V) |
| Sound and Light Alarm | Light alarm and multiple alarm sounds, including fire, medical, intrusion, panic, and more. |
| Sound Pressure | Volume high: 110 dB(A) In anechoic chamber: Volume high: 95.2 dB(A) at 1 meter |
| Carrier Frequency | 868.0 MHz–868.6 MHz |
| Transmitter Power (EIRP) | Limit 25 mW |
| Communication Mechanism | Two–way |
| Communication Distance | Up to 1,600 m (5,249.34 ft) in an open space |
| Frequency Hopping | Yes |
| Alimentation | 4 × CR123A battery/9-15 VDC |
| Power Supply Type | Type B |
| Battery Model | CR123A |
| Battery Life | 4 CR123A batteries can be used for 3.4 years (if triggered fortnightly and the alarm sounds for 120 s each time with a battery efficiency of 80%) |
| Low Battery Threshold | 2.8 VDC |
| Battery Restore Threshold | 2.9 VDC |
| Consommation | 4.2 W (Max), 0.3 mW (Standby) (Battery 3V); 12 W (Max), 87.6 mW (Standby) (DC 12V) |
| Température de fonctionnement | –25 °C to +60 °C (–13 °F to +140 °F) |
| Humidité de fonctionnement | 10%–90% (RH) |
| Dimensions | 200 mm × 200 mm × 52.5 mm (7.87" × 7.87" × 2.07") (L × W × H) |
| Poids net | 610 g (1.34 lb) |
| Poids brut | 920 g (2.03 lb) |
| Installation | Wall mount |
| Matériau du boîtier | PC + ABS |
| Indice de protection | IP65 |
| Certifications | CE EN 50131-1:2006+A1:2009+A2:2017+A3:2020 EN 50131-4:2019 EN 50131-6:2017 EN 50131-5-3:2017 Security Grade 2 Environmental Class IV |
| Niveau anticorrosion | Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection. |
| Packaging Dimensions | 255 mm × 239 mm × 64 mm (10.04" × 9.41" × 2.52") (L × W × H) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : ARA13-W2(868O) · Marque : Dahua
