Description et caractéristiques

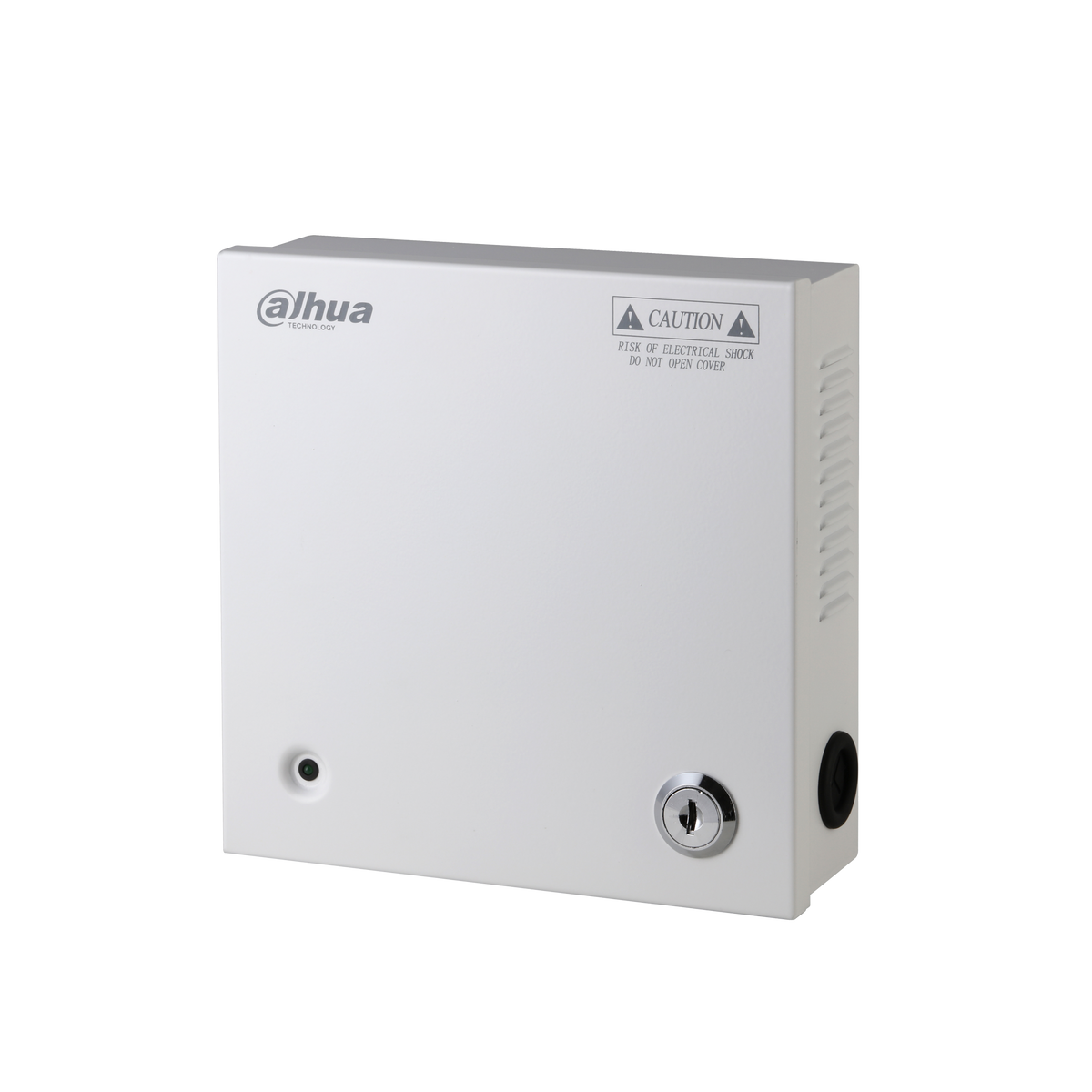

Armoire alimentation 12V 5A DAHUA
- 9 Sorties de max 2,5A
- Non secourue
Caractéristiques principales
- Type de produit : Coffret d'alimentation
- Tension : 12V
- Intensité : 5A
- Nombre de sorties : 9 ports
Fiche technique
| Model | DH-PFM341-9CH |
|---|---|
| Input Voltage Range | AC90~264V |
| Outputs | 9 x 12VDC (-3%~+7%) outputs |
| Max. output | 5 A |
| Output Protection | 9 replacement fuses, max. per output 2.5A |
| Efficiency | 84% |
| No Load Power Consumption | <0.5W |
| Internal ON/OFF Power Switch | Yes |
| Individual LED Output Indicator | Yes |
| Surge Protected | Line to ground: 4000V Line to line: 2000V |
| ESD | Contact discharge: 6000V Air discharge: 8000V |
| Working Temperature | - 20 ℃ ~ +45 ℃ ( -4 ℉ ~+ 113 ℉ ) |
| Working Humidity | <90% RH |
| Weight | 0.9kg(1.98lb) |
| Dimension(LxWxH) | 165mmx165mmx50mm(6.5”x6.5”x1.97”) |
| Installation | Wall mount |
| Color | White |
| Certification | CE(EN55032, EN55020) FCC(FCC Part 15 Class B, ISED ICES-003 Issue 6) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : PFM341-9CH · Marque : Dahua
