Description et caractéristiques

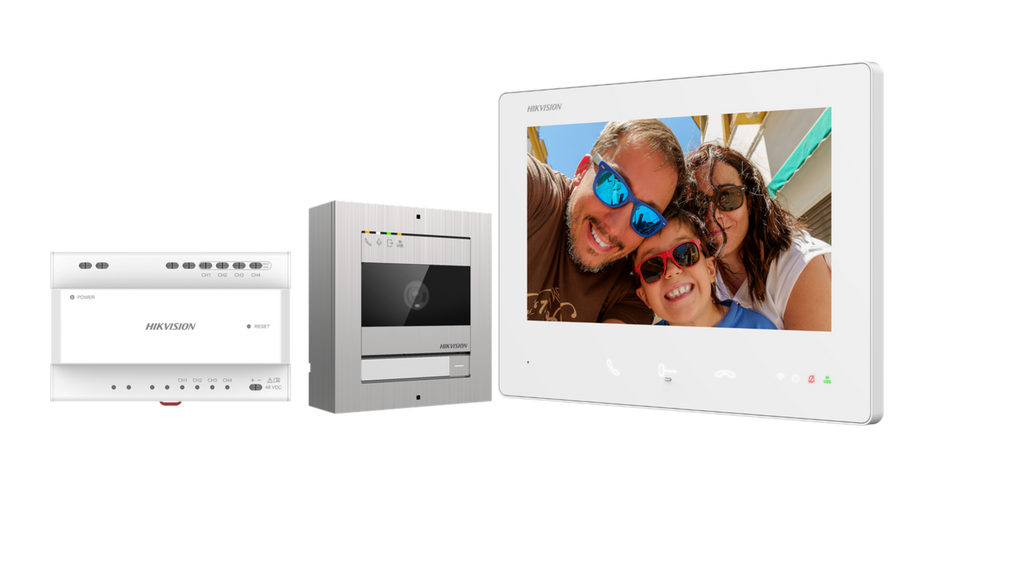

2-wire HD KIT
- Great image quality of 2 MP resolution
- One-press to call, remote unlocking with App control
- Real plug&play
- IP65 water resistant and IK08 vandal resistant entry panel
- 7-inch touch screen indoor monitor, user friendly interface
Fiche technique
| Processor | Embedded Processor |
|---|---|
| ROM | 4 GB |
| RAM | 256 MB |
| Operation system | Embedded Linux operation system |
| Screen size | NA |
| Résolutions | NA |
| Type | NA |
| Operation method | NA |
| Supplement light | Supplement light Low illumination, IR supplement lights |
| Objectif | 1 |
| Wide dynamic range (WDR) | Support |
| FOV | Horizontal: 133°, Vertical: 82° |
| Video compression standard | Main stream: H.264 Sub-stream: H.264 |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Volume adjustment | Adjustable |
| Audio compression standard | G.711 U, G.711 A |
| Audio compression bitrate | 64 Kps |
| Audio quality | Noise suppression and echo cancellation |
| Linked indoor station capacity | Max.99 |
| Sub door station capacity | 16 |
| Wireless network | 10/100 Mbps self-adaptive through 2-wire interface |
| Wi-Fi | Only AP mode for configuration |
| RS-485 | 2 (RS485 out for Hikvision's sub module communication, RS485 for reservation) |
| Lock control | 2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max ) |
| Exit button | 1 |
| Door contact input | 1 |
| Alarm input | 2（supports Exit button or Door contact input） |
| Power supply input | 12VDC input |
| TAMPER | 1 |
| Debugging port | 1 |
| Two-Wire | 1 |
| DIP Switch | 6 decimal DIP switch |
| Button | 0-2（Flexible adjustment） |
| Indicator | 4 LED lights(Opening door、Calling、Intercom、In use） |
| Power supply | 48V，Powered by distributor DS-KAD7060EY or 12VDC |
| Power consumption | ≤ 6 W |
| Working temperature | -40° C to 60° C (-22° F to 140° F) |
| Working humidity | 10% to 90% |
| Application environment | Outdoor |
| Dimension (W × H × D) | 99.5 mm × 98.5 mm × 35 mm (3.92" × 3.88" × 1.37") |
| Installation | Surface mounting |
| Protective level | IP65 IK08 |
| Language | English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese |
| Operatiing method | Capacitive touch screen |
| Notice capacity | 200 captured pictures (with TF card) |
| Linked indoor extensions capacity | 3 |
| Wired network | Two-wire network |
| Network protocol | TCP/IP, SIP, RTSP |
| Alarm output | / |
| TF card | Max to 128 G, SD 2.0 or lower version |
| USB | / |
| DIP switch | 5 decimal DIP switch and 4 binary DIP switch |
| Power interface | 48VDC |
| Two-wire interface | CH1-CH4 for Door station and Indoor station |
| Indicators | 4 Signal indicators; 1 Power indicator |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : DS-KIS704EY/FRANCE SAS · Marque : Hikvision
