Description et caractéristiques

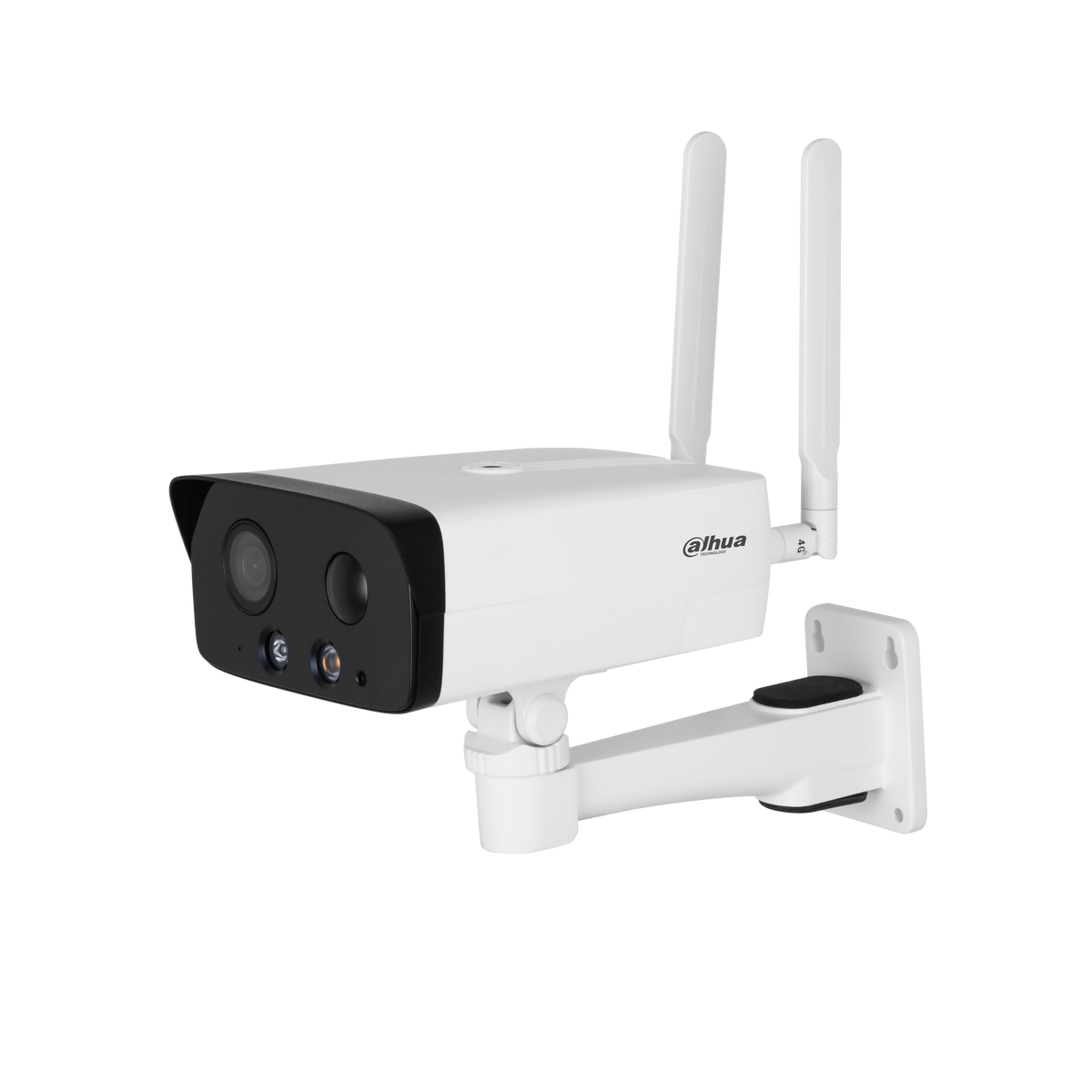

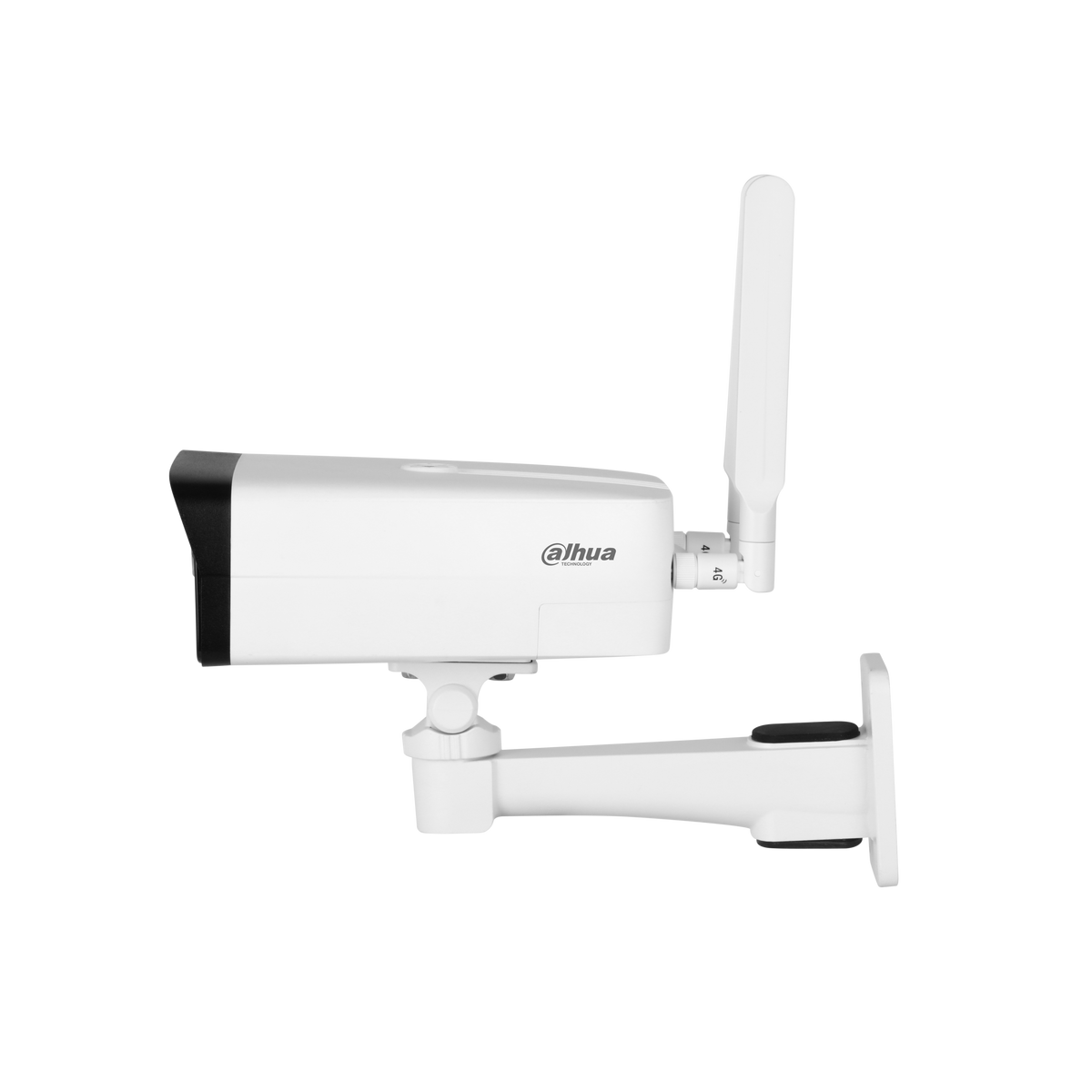

Tube IP blanc
- 4 Mp
- FF 2.8mm
- IR 50m
- IA WizSense
- Protection périmétrique
- 4G
- Micro intégré
- 12V
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Solution 4G
- Intelligence Artificielle : WizSense, Protection périmétrique
- Résolution : 4 MP
- Focale Fixe : 2.8 mm
Fiche technique
| Capteur | 1/3" CMOS |
|---|---|
| Résolution max. | 2688 (H) × 1520 (V) |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.01 lux@F1.6 (Color, 30 IRE); 0.001 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| Rapport signal/bruit | ＞56 dB |
| Portée de l'éclairage | 2.8 mm: Up to 50 m (164.04 ft) (IR LED); Up to 30 m (98.43 ft) (Warm light)3.6 mm: Up to 50 m (164.04 ft) (IR LED); Up to 30 m (98.43 ft) (Warm light)6 mm: Up to 50 m (164.04 ft) (IR LED); Up to 30 m (98.43 ft) (Warm light) |
| Contrôle de l'éclairage | Auto;Manual |
| Nombre d'illuminateurs | 1 (IR LED); 1 (Warm light) |
| Réglage angulaire | Pan: 0° to 360°; Tilt: -60°to 0°; Rotation: 0° to 360° |
| Type d'objectif | Fixed-focal |
| Monture | M12 |
| Focale | 2.8 mm; 3.6 mm; 6 mm |
| Ouverture max. | F1.6 |
| Champ de vision | 2.8 mm: H: 102°; V: 54°; D: 121°3.6 mm: H: 84°; V: 42°; D: 101°6 mm: H: 52°; V: 48°; D: 61° |
| Iris | Fixed |
| Distance mini de mise au point | 2.8 mm: 0.9 m (2.95 ft)3.6 mm: 1.7 m (5.58 ft)6 mm: 3.2 m (10.50 ft) |
| IVS (protection périmétrique) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD (détection humain/véhicule) | SMD 3.0 |
| Recherche intelligente | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 *includes smart codec technology, Smart H.265+ and Smart H.264+ |
| Fréquence d'images | Main stream: 2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Flux | 2 streams |
| Résolutions | 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Contrôle du débit | VBR;CBR |
| Débit vidéo | H.264: 32 kbps–8192 kbps; H.265: 32 kbps–8192 kbps |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| Balance des blancs | Auto; Natural; Street Lamp; Outdoor; Manual; Regional Custom |
| Contrôle du gain | Auto |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Éclairage intelligent | Yes |
| Miroir | Yes |
| Masques de confidentialité | 4 areas |
| Micro intégré | Yes |
| Built-in Speaker | Yes |
| Compression audio | G.711a; G.711Mu; G.726; PCM |
| Événements d'alarme | SD card error; SD card full; IP conflict; illegal access; motion detection; video tampering;tripwire; intrusion; audio detection; security exception; PIR alarm; external alarm; low battery alarm; |
| Port réseau | RJ-45 (10/100 Base-T) |
| Carrier Network System | 4G: FDD-LTE: B1/3/5/7/8/20/28 TDD-LTE: B38/40/41 Applicable regions: Europe, Asia-Pacifc, Africa Power class 3: 23 dBm ±2.7 dB 3G: WCDMA: B1/5/8 Applicable regions: Europe, Asia-Pacifc, Africa Power class 3: 24 dBm +1/-3 dB 2G: GSM/GPRS/EDGE: B3/5/8 Applicable regions: Europe, Asia-Pacifc, Africa Power class 0: 30 dBm ±2 dB (GSM 850/900) Power class 5: 33 dBm ±2 dB (GSM 1800/1900) |
| SDK and API | Yes |
| Protocoles réseau | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interopérabilité | ONVIF (Profile S & Profile G); CGI; P2P |
| Utilisateurs simultanés | 20 (Total bandwidth: 80 M) |
| Stockage | Bulit in eMMC (8 GB); FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Navigateur | IE; Chrome; Firefox |
| Logiciels de gestion | DSS; DMSS |
| Application mobile | iOS;Android |
| Sécurité | Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade |
| RS-485 | 1 (Only report the information of solar battery, such as power and battery level) |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 1 channel in: supports wet contact connection (max load 5 mA 3–5 VDC); supports dry contact connection |
| Sortie d'alarme | 1 channel out: wet contact, max load 300 mA 12 VDC |
| Alimentation | 12 VDC (±30%) |
| Consommation | Sleep Mode: 0.03 W; General Mode: 4 W; Power Saving Mode: 2 W; Max. (4G pulling stream+IR+speaker+warning light): 7.5 WSleep Mode: 0.03 W; General Mode: 4 W; Power Saving Mode: 2W; Max. (4G pulling stream+IR+speaker+warning light): 7.5 W |
| Température de fonctionnement | –40 °C to +60 °C (–40 °F to +140 °F) |
| Humidité de fonctionnement | ≤95% |
| Température de stockage | –40 °C to +60 °C (–40 °F to +140 °F) |
| Indice de protection | IP67 |
| Matériau du boîtier | Metal + plastic |
| Dimensions | 132 mm × 219 mm × 179 mm (5.20" × 8.62" × 7.05") (L × W × H) |
| Poids net | 680 g (1.50 lb) |
| Poids brut | 1180 g (2.60 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HFW3441DGP-AS-4G-NL668EAU-B-0280B · Marque : Dahua
