Description et caractéristiques

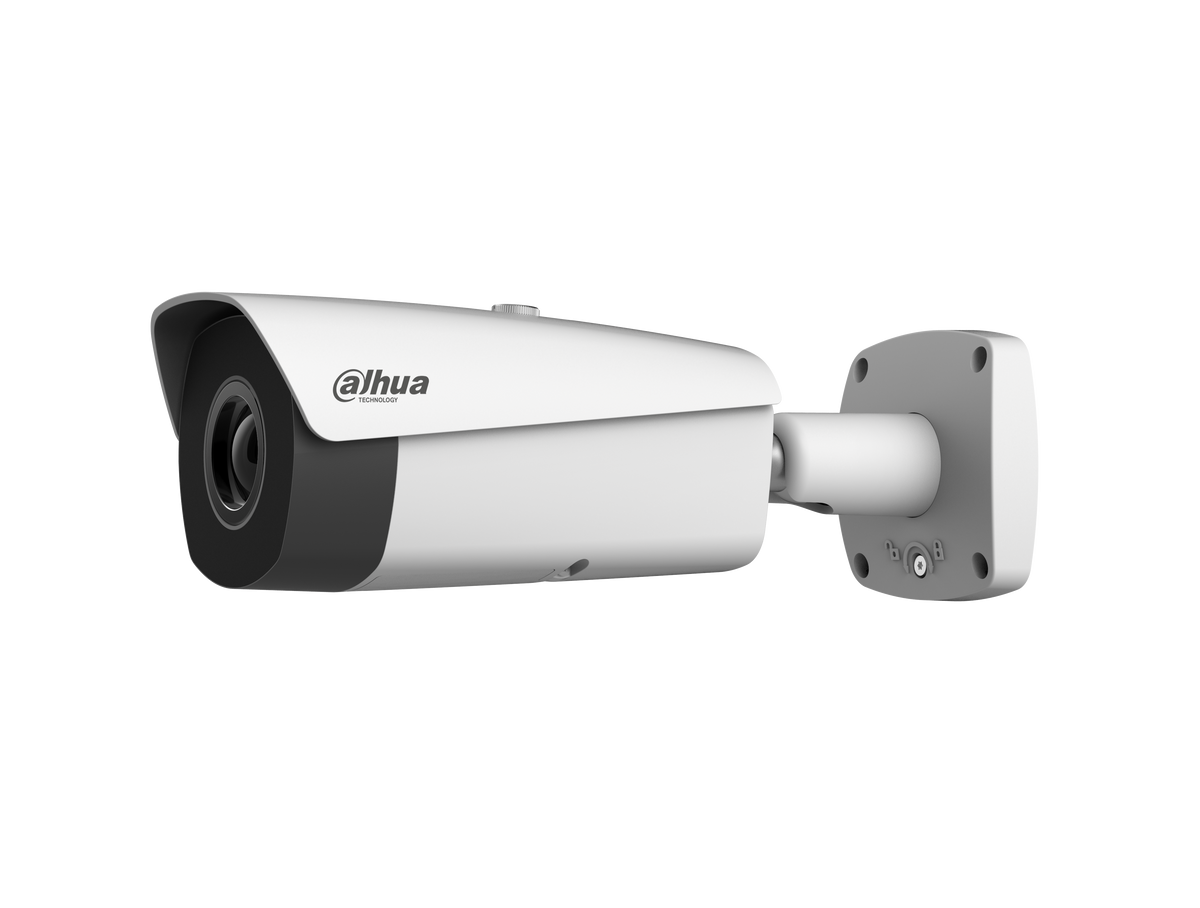

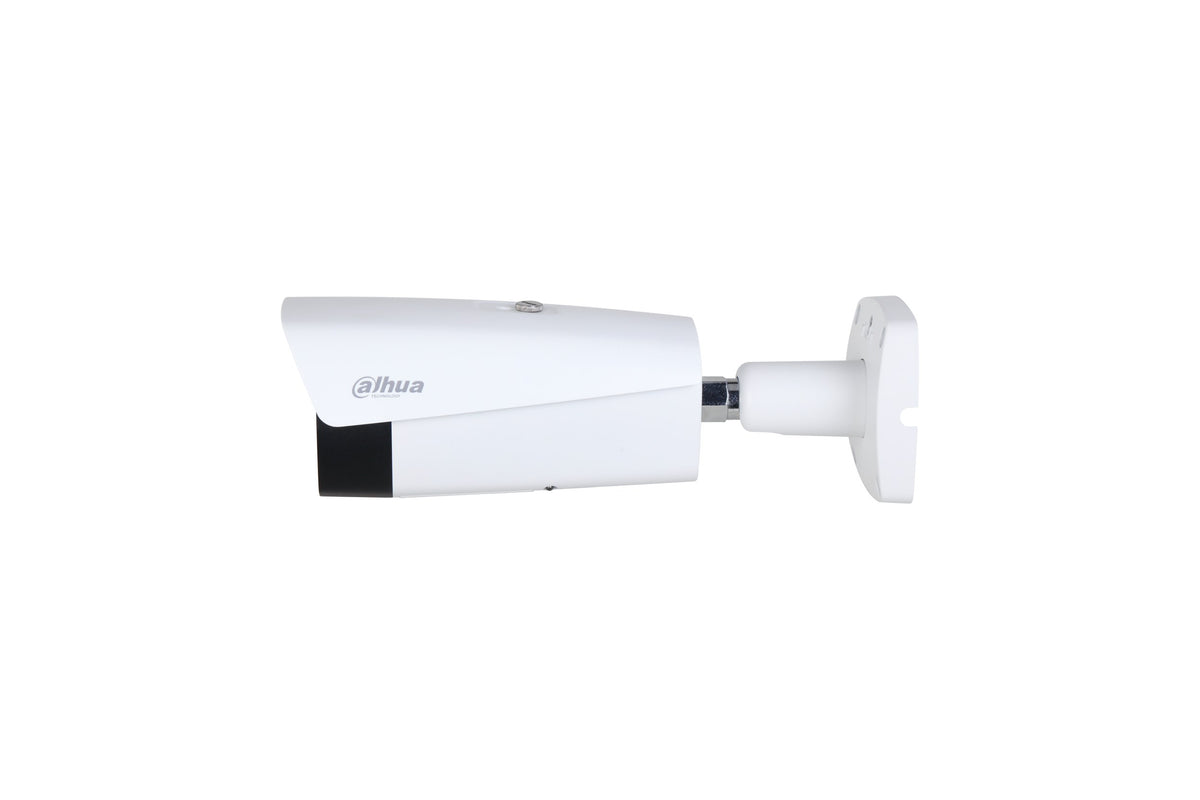

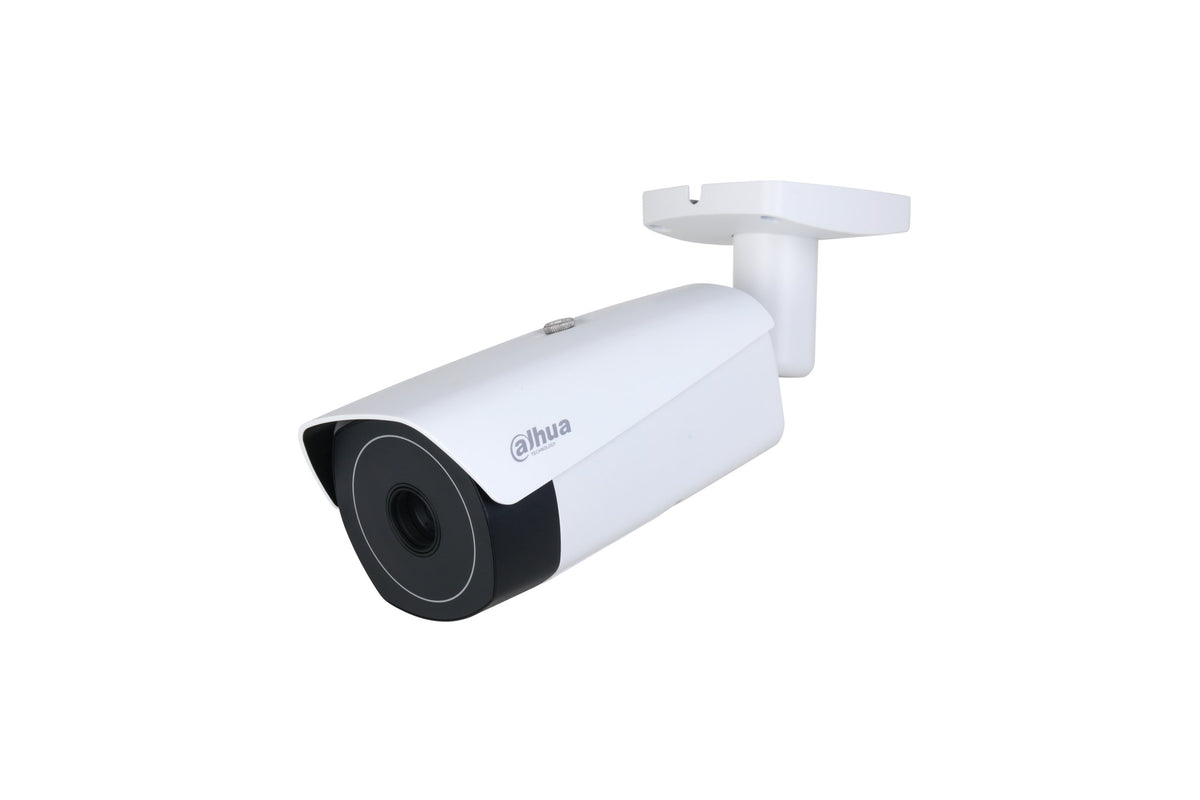

Tube Thermique IP blanc
- FF 13mm
- 640x512 Pxls
- IP67
- POE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Thermique
- Résolution thermique : 640 x 512
- Focale thermique : 13 mm
- Audio : Entrée audio, Sortie audio
Fiche technique
| Detector Type | Vanadium oxide uncooled focal plane detector |
|---|---|
| Effective Pixels | 640 (H) × 512 (V) |
| Pixel Size | 17 μm |
| Thermal Sensitivity (NETD) | 40 mK |
| Spectral Range | 8 μm–14 μm |
| Image Setting | Brightness/Sharpness/ROI/AGC/FFC/3D DNR |
| Color Palettes | 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter) |
| Type d'objectif | Fixed/F1.0 |
| Focus Control | Athermalized, Focus-free |
| Focale | Identification Distance ③ |
| Angle of View | 7.5 mm : H: 91.2°; V: 70.3° 13 mm: H: 48.9°; V: 38.8° 25 mm:H: 24.6°; V: 19.8° 35 mm:H: 17.6°; V: 14.1° |
| Compression | G.711A; G.711Mu; AAC; PCM |
| Frame Rate | Main Stream: Thermal: 1280 × 1024; 720p; 640 × 512@25/30 fps Sub Stream: Thermal: 640 × 512; 320 × 256@25/30 fps |
| Contrôle du débit | CBR/VBR |
| Bit Rate | H.264: 640–8192 Kbps |
| Détection de mouvement | Off/On (4 zone, Rectangle) |
| Region of Interest | Off/On (4 zone) |
| Zoom numérique | 4 × (24 levels) |
| Flip | 180° |
| Miroir | Off/On |
| Masques de confidentialité | Off/On (4 area, Rectangle) |
| IVS | Tripwire, Intrusion |
| Advanced Intelligent Functions | Heat detection & alarm, Cold/Hot spot trace, Human/Vehicle classification |
| Ethernet | RJ-45 |
| Protocol | IPv4/IPv6; HTTP; HTTPS; SSL ; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x |
| Interopérabilité | ONVIF Profile S & G, API |
| Streaming Method | Unicast/Multicast |
| Max. User Access | 10 Users/20 Users |
| Edge Storage | Micro SD (256GB) Memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording |
| Web Viewer | > IE8; |
| Logiciels de gestion | SmartPSS; DSS |
| Smart Phone | Android; iOS |
| Certification | CE (EN 60950: 2000); FCC (FCC Part 15 SubpartB ) |
| Video Interface | 1 Port (CVBS/BNC) |
| Audio Interface | 1/1 In /Out |
| RS485 | Yes |
| Alarm | 2/2 In/Out |
| Alimentation | 12 VDC/PoE / ePoE |
| Consommation | Max. 13 W |
| Operating Condition | –40°C to +70°C (–40°F to +158°F)/Less than 95% RH * Start up should be done at above -40°C (-40°F) |
| Storage Conditions | –40°C to +70°C ( –40°F to +158°F) /Less than 95% RH |
| Ingress Protection | IP67 |
| Casing | Metal |
| Dimensions | 291 mm × 103 mm × 97 mm (11.46" × 4.06" × 3.82") (L × W × H) |
| Poids net | 1.5 Kg (3.31 lb) |
| Poids brut | 1.9 Kg (4.19 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : TPC-BF5601P-B13 · Marque : Dahua
