Description et caractéristiques

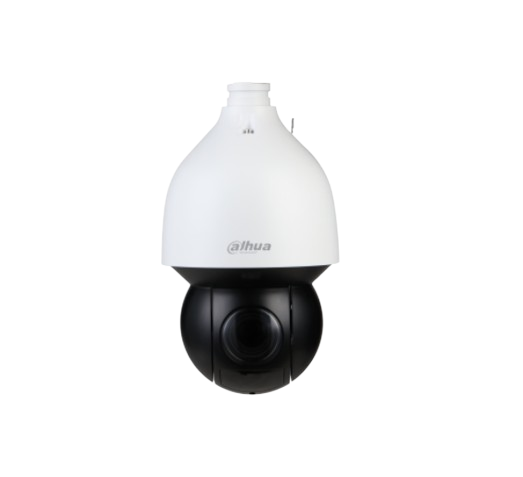

Dôme motorisée PTZ IP
- Blanc
- 4 MP
- Varifocale motorisé 5mm-125mm
- Zoom optique
- IR 150m
- WizeSense
- Starlight
- Protection périmétrique
- Comptage de personne
- Détection de visage
- Entrée / Sortie audio
- 12V
- IP67
- IK10
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight
- Intelligence Artificielle : WizSense, Protection périmétrique, Détection de visage, Comptage de personne
- Résolution : 4 MP
- Varifocale : 5 - 125 mm
Fiche technique
| Capteur | 1/2.8" CMOS |
|---|---|
| Pixel | 4 MP |
| Résolution max. | 2560 (H) × 1440 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Obturateur électronique | 1s–1/30,000s |
| Balayage | Progressive |
| Sensibilité (éclairement min.) | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (IR light on) |
| Portée de l'éclairage | 150 m (492.13 ft) (IR) |
| Contrôle de l'éclairage | Zoom Prio; Manual; Auto; Off |
| Nombre d'illuminateurs | 4 (IR) |
| Focale | 5 mm–125 mm |
| Ouverture max. | F1.6–F3.6 |
| Champ de vision | H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7° |
| Zoom optique | 25× |
| Focus Control | Auto; semi-auto; manual |
| Distance mini de mise au point | 0.1 m–2 m (0.33 ft–6.6 ft) |
| Iris | Auto; manual |
| Distance DORI | Identify |
| 2,500 m (8202.10 ft) | 250 m (820.21 ft) |
| Pan/Tilt Range | Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°/s–300°/s Tilt: 0.1°/s–200°/s |
| Preset Speed | Pan: 400°/s; Tilt: 300°/s |
| Préréglages | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern;Preset;Scan;Tour |
| PTZ Protocol | DH-SD Pelco-P/D (Auto recognition) |
| IVS (protection périmétrique) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking |
| Face Detection | Supports face detection, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute extraction is also supported |
| Video Metadata | Detects motor and non-motor vehicles, faces and human bodies. It also performs tracking, takes snapshots, uploads high-quality face images and optimizes images. It extracts attributes from motor vehicles, detecting up to 10 attributes for them. |
| People Counting | Uses advanced image processing technology to extract depth information from images. The extracted information is then processed by advanced, deep learning algorithms to analyze and detect human bodies, and track targets in real time. The camera provides statistics for separate individuals' entrance and exit with up to 95% counting accuracy. |
| Auto Tracking | Yes |
| SMD (détection humain/véhicule) | SMD 4.0 |
| Auto Patrol | It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets. |
| Acupick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Compression vidéo | H.264H;H.264B;Smart H.265+;H.264;H.265;Smart H.264+;MJPEG |
| Flux | 3 streams |
| Résolutions | 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 960p (1920 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
| Fréquence d'images | Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/CIF/VGA @ (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p @(1–25/30 fps) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H264: 96 kbps–14848 kbps H265: 38 kbps–8960 kbps |
| Jour/Nuit | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| Balance des blancs | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Contrôle du gain | Auto; manual |
| Réduction du bruit | 2D NR; 3D NR |
| Détection de mouvement | Yes |
| Région d'intérêt (RoI) | Yes |
| Image Stabilization | EIS |
| Defog | Electronic |
| Zoom numérique | 16× |
| Rotation de l'image | 180° |
| Masques de confidentialité | Up to 24 areas can be set, with up to 8 areas in the same view; multiple colors available |
| Rapport signal/bruit | ≥55 dB |
| Compression audio | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Port réseau | RJ-45 (10/100 Base-T) |
| Protocoles réseau | FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP |
| Interopérabilité | CGI;SDK;ONVIF (Profile S&G&T) |
| Streaming Method | Unicast/Multicast |
| Utilisateurs simultanés | 20 (total bandwidth: 64 M) |
| Stockage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Navigateur | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Logiciels de gestion | DSS;DMSS;Easy4ip;Smart PSS;IVSS |
| Application mobile | iOS;Android |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
| Entrée d'alarme | 2 (on-off value input: 0–5 VDC) |
| Sortie d'alarme | 1 |
| Entrée audio | 1 channel (LINE IN, bare wire) |
| Sortie audio | 1 channel (LINE OUT,bare wire) |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output; audio |
| Événements d'alarme | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card status detection; memory space detection |
| Alimentation | 24 VDC, 2.5 A ± 25% PoE+ (802.3at) |
| Consommation | Basic: 12 W Max: 21 W (illuminator + PTZ + Heater + Fan) |
| Température de fonctionnement | –40 °C to +70 °C (–40 °F to +158 °F) |
| Humidité de fonctionnement | ≤95% |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : SD5A425GB-HNR · Marque : Dahua
