Description et caractéristiques

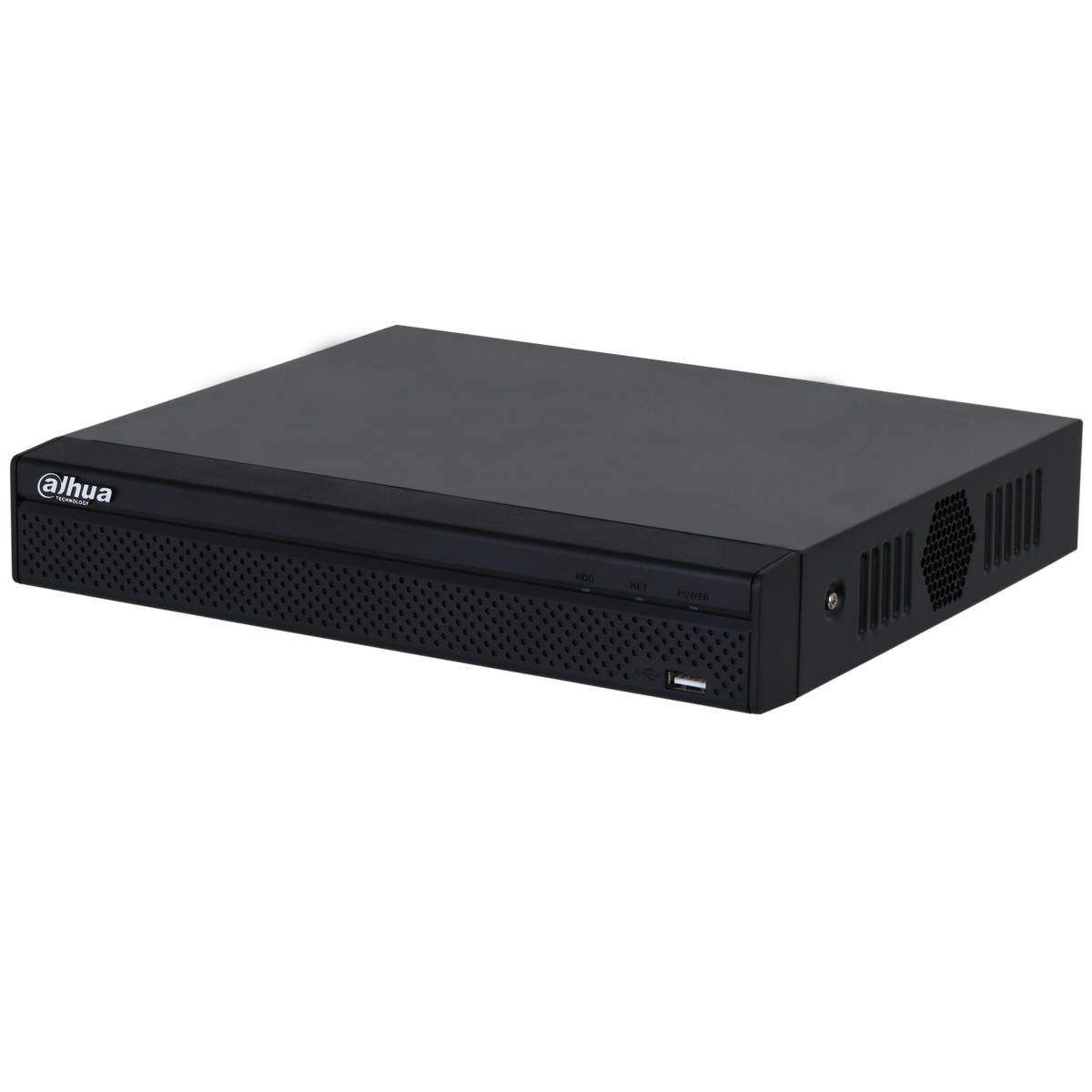

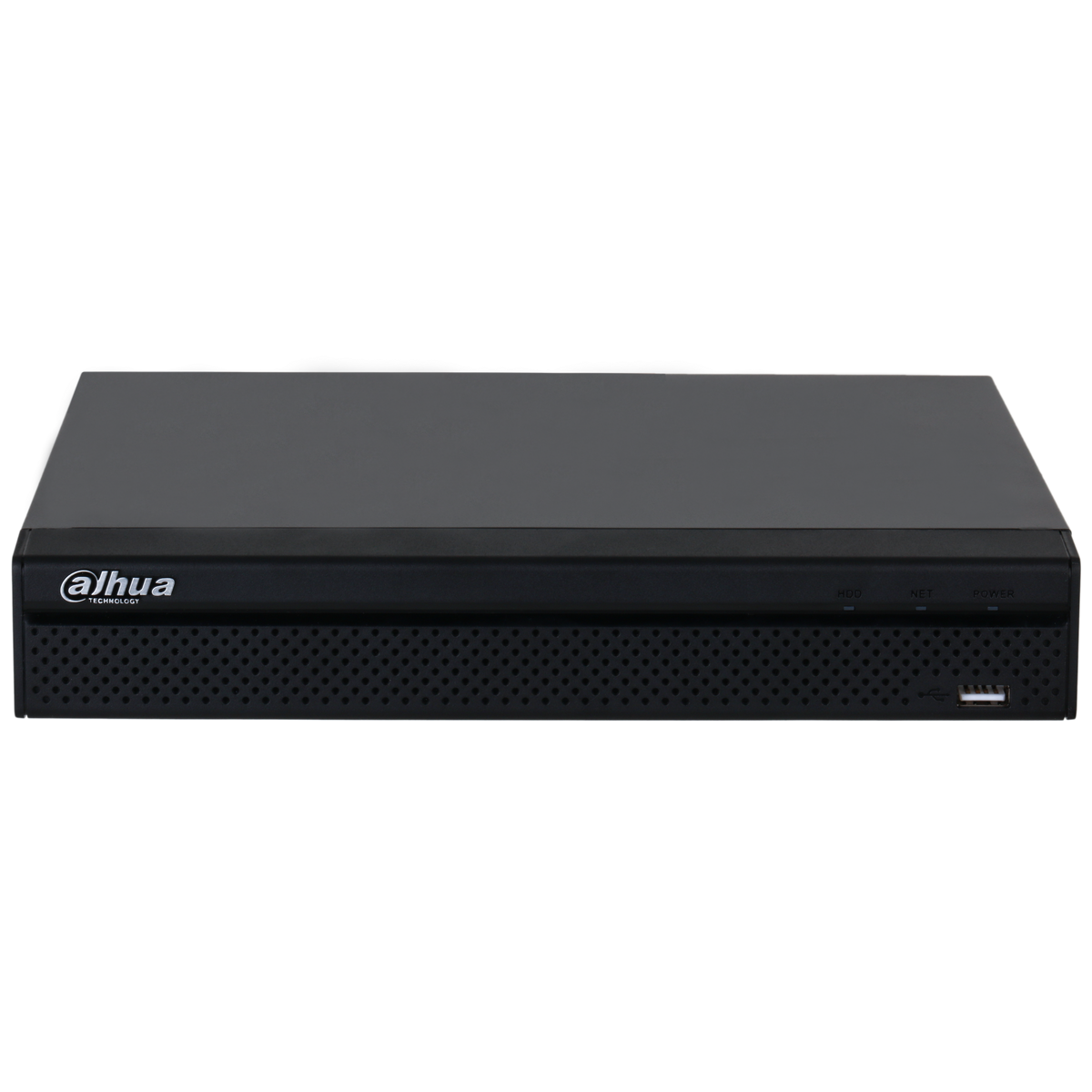

Enregistreur NVR IP
- 12 MP
- 8 canaux
- 144 Mbps
- SMD+
- Protection périmétrique
- Sortie vidéo HDMI/VGA
- 1 port SATA
- 8 POE
- 1U
- 1 HDD
- 53V
Caractéristiques principales
- Technologie d'enregistreur : NVR - Enregistreurs IP
- Nombre de voies vidéo : 8 voies
- IA de l'enregistreur : SMD Plus
- IA supporté par l'enregistreur : Protection périmétrique
- Résolution maximum : 12 MP
Fiche technique
| Processeur | Industrial-grade processor |
|---|---|
| Système d'exploitation | Embedded Linux |
| Operating Interface | Web, Local GUI |
| AI by Recorder | SMD |
| AI by Camera | Perimeter protection; SMD |
| SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | All channels (8 targets/s) |
| Access Channel | 8 channels |
| Network Bandwidth | AI disabled: 144 Mbps incoming, 144 Mbps recording and 72 Mbps outgoing AI enabled: 72 Mbps incoming, 72 Mbps recording and 36 Mbps outgoing |
| Résolutions | 12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF |
| Capacité de décodage | AI disabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 6 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8 MP@30 fps; 1-channel 6 MP@30 fps; 1-channel 5 MP@30 fps; 2-channel 4 MP@30 fps; 4-channel 1080p@30 fps |
| Video Output | 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | 1/4/8/9 |
| Third-party Camera Access | ONVIF |
| Compression vidéo | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Compression audio | G.711a; G.711u; PCM; G726; |
| Protocoles réseau | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration |
| Mobile Phone Access | iOS; Android |
| Interopérabilité | ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK |
| Navigateur | Chrome; IE; Safari; Edge; Firefox |
| Multi-channel Playback | Up to 8 channels |
| Record Mode | General, motion detection; intelligent; alarm |
| Backup Method | USB device and network |
| Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
| General Alarm | Motion detection; camera external alarm; PIR alarm |
| Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | Perimeter protection; SMD Plus |
| Alarm Linkage | Recording; snapshot; buzzer; log; preset; email; tour |
| Entrée audio | 1-channel RCA |
| Sortie audio | 1-channel RCA |
| Entrée d'alarme | NA (2 channels are optional) |
| Sortie d'alarme | NA (1-channel 12 V 1 A output is optional) |
| Disk Interface | 1 SATA port. Each disk can contain up to 20 TB. this limit varies depending on the environment temperature. |

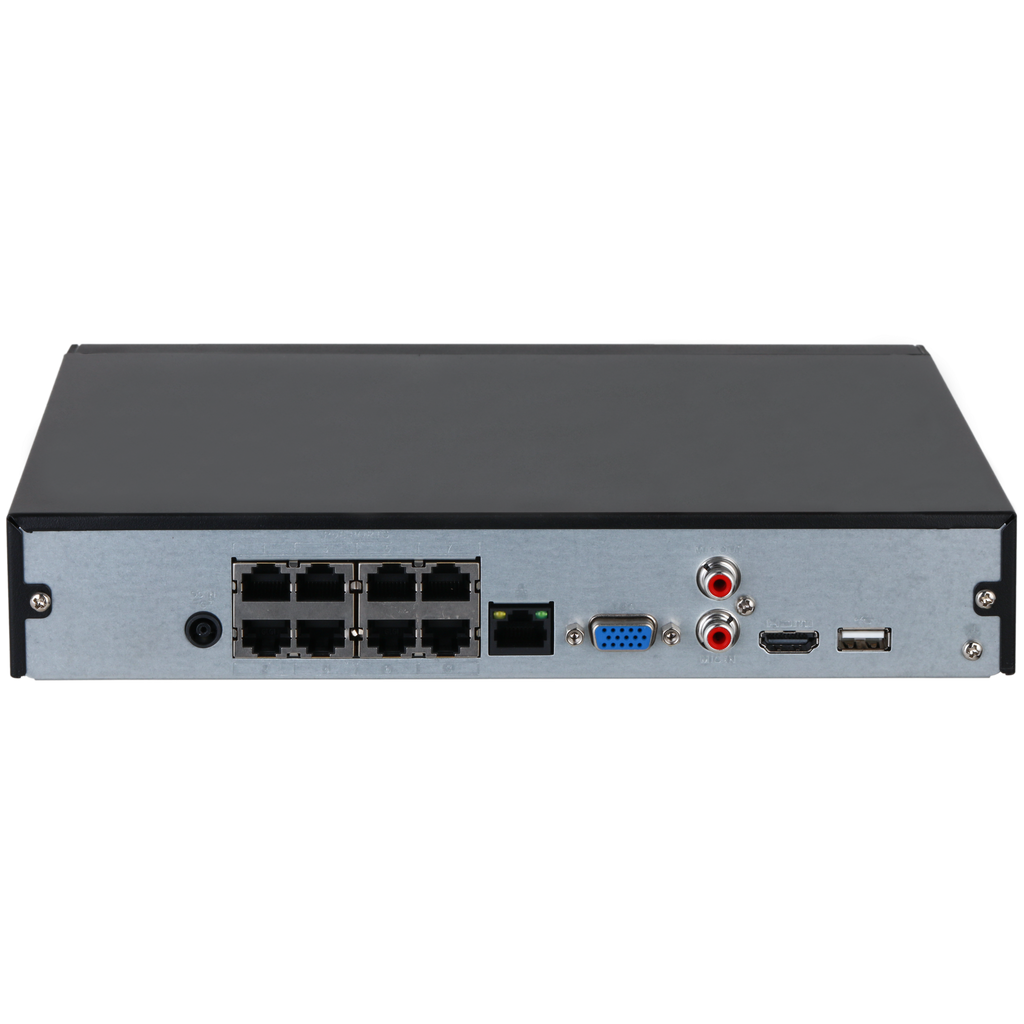

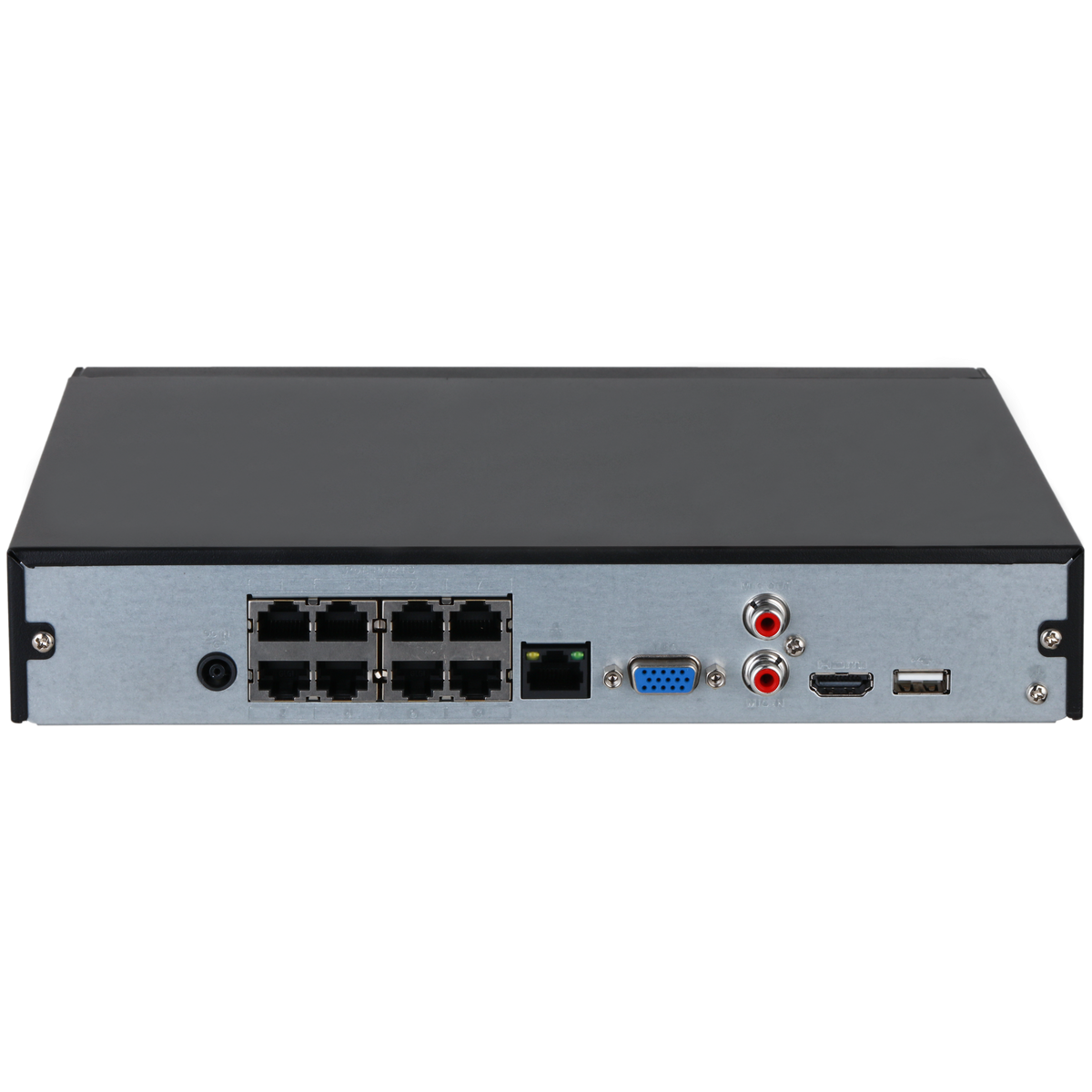

| USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Port réseau | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| PoE Port | 8 ports, 10/100 Mbps, IEEE 802.3 af/at |
| Alimentation | 53 VDC, 1.81 A |
| Consommation | Total output of NVR is <10 W (without HDD) Total output power of PoE is 72 W, the maximum output power of a single port is 25.5 W |
| Poids net | 0.89 kg (1.96 lb) |
| Poids brut | 2.05 kg (4.52 lb) |
| Dimensions | 260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H) |
| Packaging Dimensions | 374.0 mm × 119.0 mm × 311.0 mm(14.72" × 4.69" × 12.24" )(W × D × H) |
| Température de fonctionnement | –10 °C to +55 °C (14 °F to +131 °F) |
| Température de stockage | –20 °C to +60 °C (–4 °F to +140 °F) |
| Humidité de fonctionnement | 10%–93% (RH), non-condensing |
| Certifications | CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : NVR2108HS-8P-4KS3 · Marque : Dahua
