Description et caractéristiques

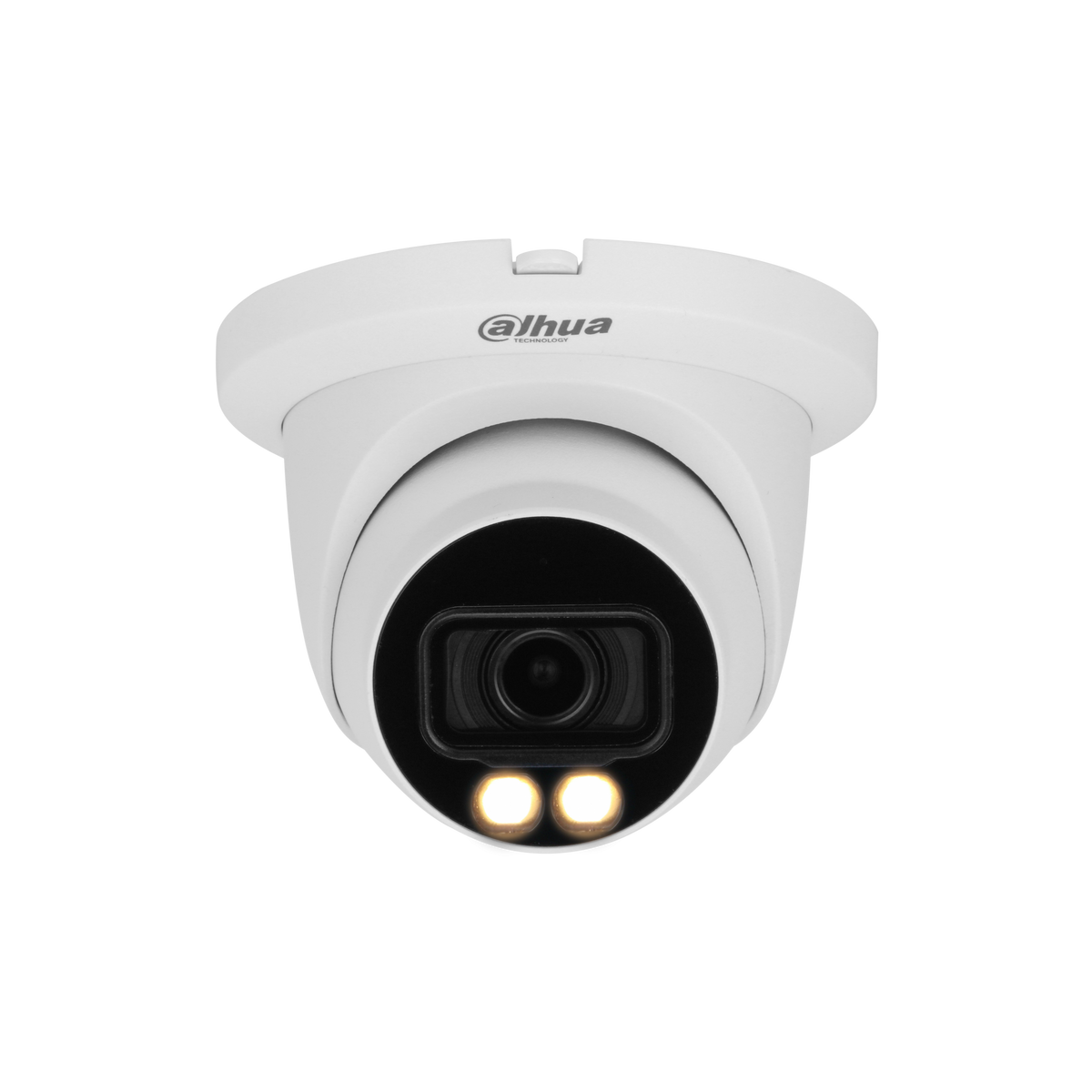

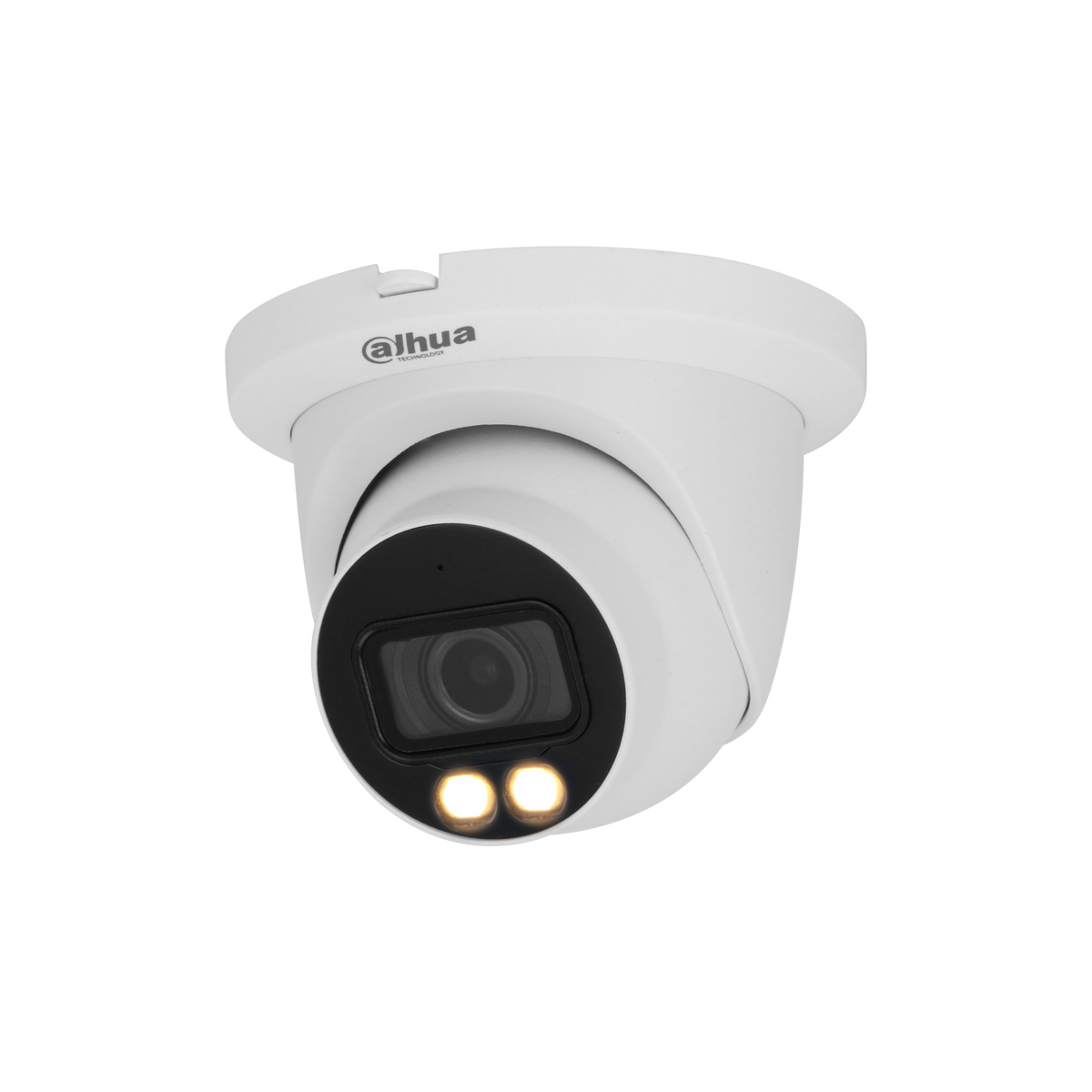

Eyeball IP blanc
- 4 Mp
- FF 2.8mm
- IR 30m
- Full color
- Protection périmétrique
- Comptage
- Micro intégré
- 12V POE ePoE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Full Color
- Intelligence Artificielle : WizMind, Protection périmétrique, Comptage de personne
- Résolution : 4 MP
- Focale Fixe : 2.8 mm
Fiche technique
| Capteur | 1/1.8” CMOS |
|---|---|
| Résolution max. | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.0005 Lux@F1.0 (Color, 30IRE) |
| Rapport signal/bruit | > 56 dB |
| Portée de l'éclairage | 30 m (98.4 ft) |
| Contrôle de l'éclairage | Auto; manual |
| Nombre d'illuminateurs | 2 (Warm light) |
| Plage pan/tilt/rotation | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Type d'objectif | Fixed-focal |
| Monture | M16 |
| Focale | 2.8 mm; 3.6 mm |
| Ouverture max. | F1.0 |
| Champ de vision | 2.8 mm: Horizontal 107°;Vertical 60°;Diagonal 135° 3.6 mm: Horizontal 95°;Vertical 51°;Diagonal 116° |
| Iris | Fixed |
| Distance mini de mise au point | 2.8 mm: 1.6 m (5.2 ft) 3.6 mm: 2.6 m (8.5 ft) |
| Distance DORI | Identify |
| IVS | Abandoned object; missing object |
| Heat Map | Yes |
| IVS (protection périmétrique) | Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection |
| People Counting | Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports. Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm. |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Micro intégré | Yes |
| Compression audio | PCM; G.711a; G.711Mu; G.726; G.723 |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+/H.264+ |
| Fréquence d'images | Main stream: 2688 × 1520 (1 fps–25/30 fps) Sub stream: D1 (1 fps–25/30 fps) Third stream: 1080p (1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Flux | 3 streams |
| Résolutions | 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Contrôle du débit | CBR/VBR |
| Débit vidéo | H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps |
| Jour/Nuit | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Contrôle du gain | Auto; manual |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Defog | Yes |
| Rotation de l'image | 0°/90°/180°/270° |
| Miroir | Yes |
| Masques de confidentialité | 8 areas |
| Port réseau | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade |
| Protocoles réseau | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP |
| Interopérabilité | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P |
| Utilisateurs simultanés | 20 (Total bandwidth: 80 M) |
| Stockage | FTP; SFTP; Micro SD card (Support max. 256 G); NAS |
| Navigateur | IE: IE8 and later Chrome Firefox |
| Logiciels de gestion | Smart PSS; DSS; DMSS |
| Application mobile | iOS; Android |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Alimentation | 12V DC (±30%)/PoE (802.3af)/ePoE |
| Consommation | Basic: 2.4 W (12 VDC); 3 W (PoE) Max. (H.265 + 3 streams + intelligence + LED): 6.5 W (12 VDC); 7.2 W (PoE) |
| Température de fonctionnement | –40°C to +60°C (–40°F to +140°F)/Less than 95% RH |
| Température de stockage | –40°C to +60°C (–40°F to +140°F) |
| Indice de protection | IP67 |
| Casing | Metal |
| Dimensions | 104.4 mm × Φ121.9 mm (4.11" × Φ4.80") |
| Poids net | 500 g (1.1 lb) |
| Poids brut | 680 g (1.5 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HDW5449TMP-SE-LED-0280B-QSH · Marque : Dahua
