Description et caractéristiques

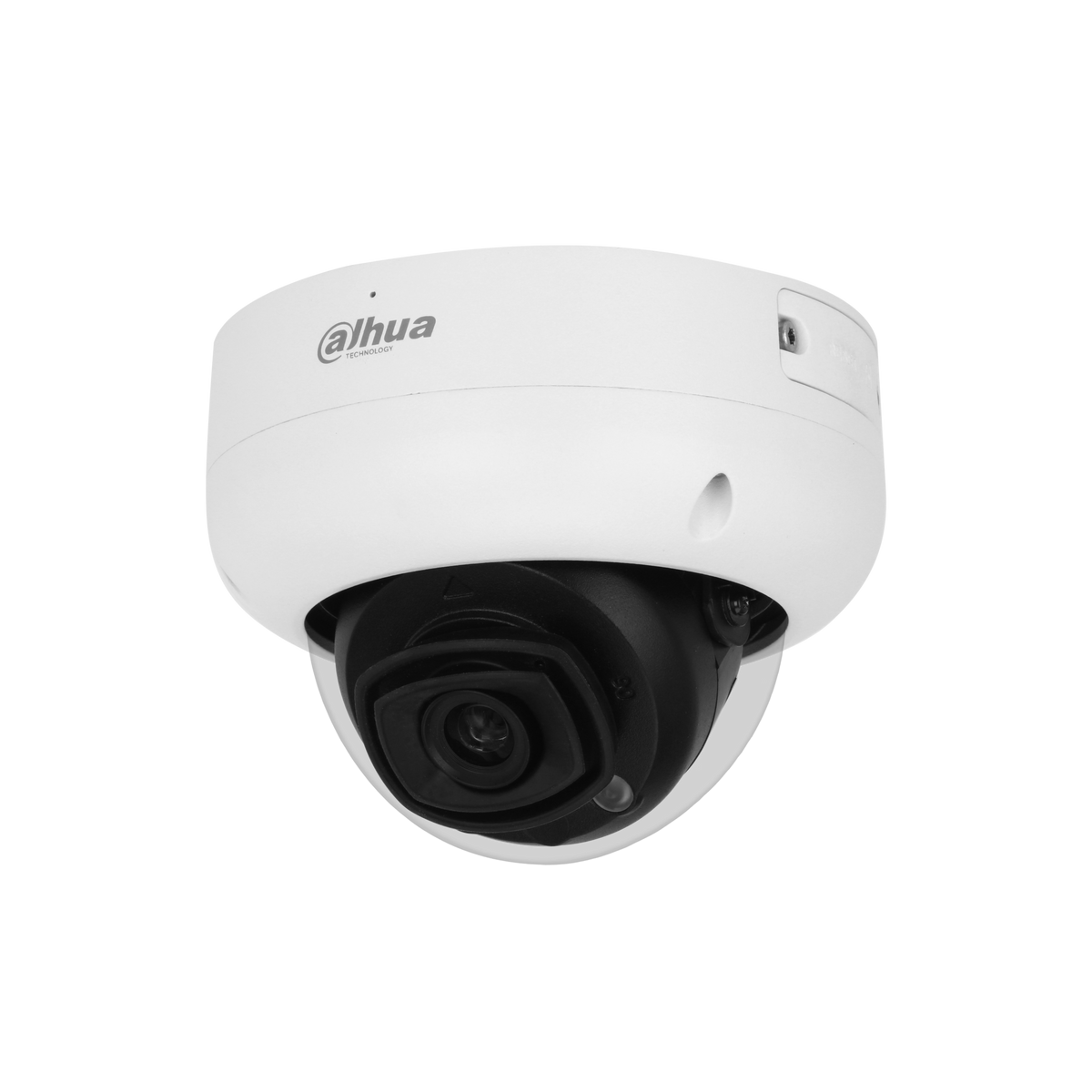

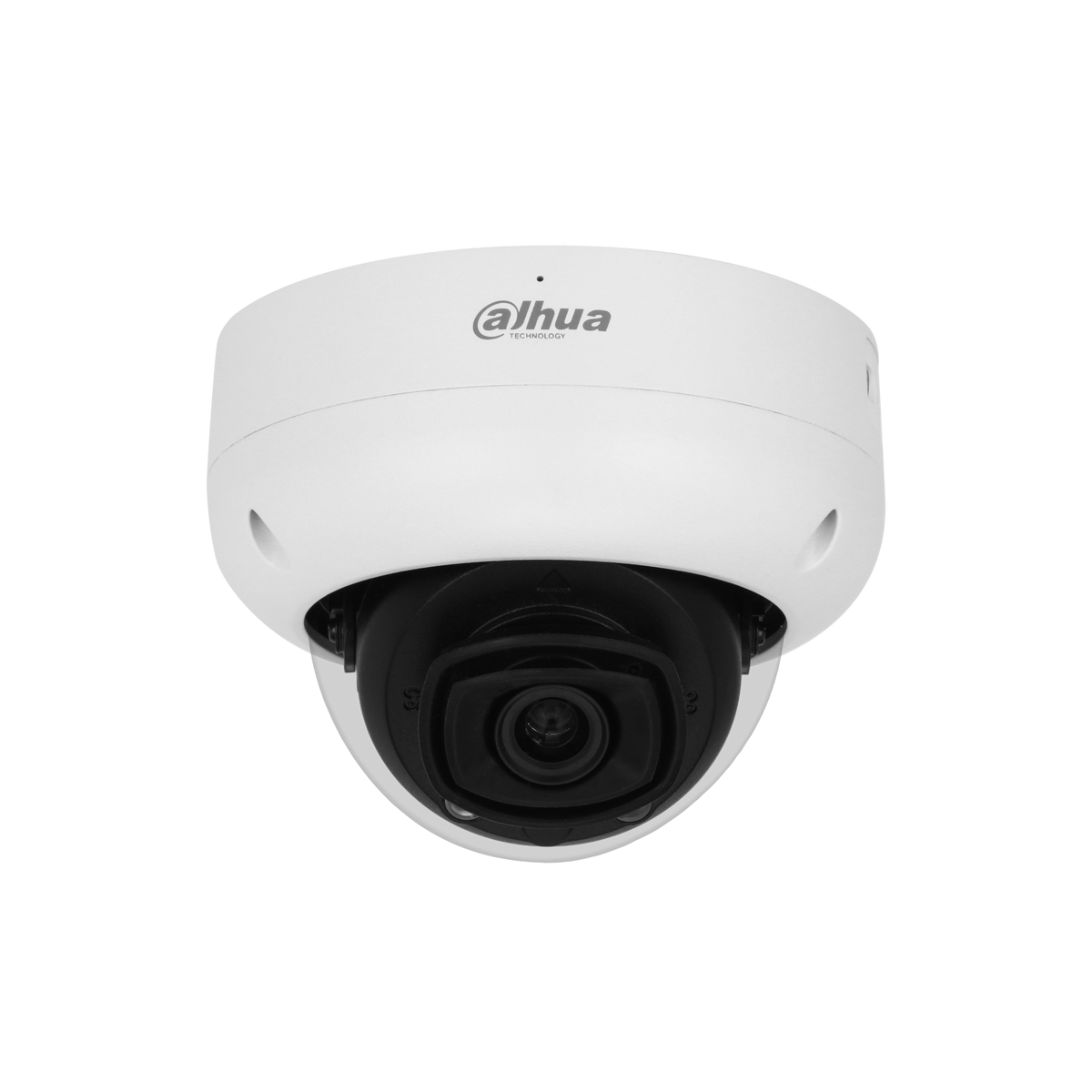

Dôme IP blanc
- 4MP
- FF 2.8 mm
- WizMind
- AcuPick
- Protection périmétrique
- Comptage de personne
- IR 50m
- Entrée/sortie audio
- Micro intégré
- 12V
- ePOE
- POE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Intelligence Artificielle : WizMind, Protection périmétrique, Comptage de personne, AcuPick
- Résolution : 4 MP
- Focale Fixe : 2.8 mm
- IR & LED : IR 50 m
Fiche technique
| Capteur | 1/2.9" CMOS |
|---|---|
| Résolution max. | 2688 (H) × 1520 (V) |
| ROM | 256 MB |
| RAM | 1 GB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100,000 s |
| Sensibilité (éclairement min.) | 0.002 lux@F1.6 (Color, 30 IRE) 0.0002 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| Rapport signal/bruit | ＞56 dB |
| Portée de l'éclairage | Up to 50 m (164.04 ft) (IR) |
| Contrôle de l'éclairage | Auto;Manual |
| Nombre d'illuminateurs | 2 (IR LED) |
| Réglage angulaire | Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355° |
| Type d'objectif | Fixed-focal |
| Monture | M12 |
| Focale | 3.6 mm; 6 mm; 2.8 mm |
| Ouverture max. | F1.6 |
| Champ de vision | 2.8 mm: H: 101°; V: 55°; D: 121° 3.6 mm: H: 84°; V: 43°; D: 100° 6 mm: H: 52°; V: 28°; D: 61° |
| Iris | Fixed |
| Distance mini de mise au point | 2.8 mm: 1.1 m (3.61 ft) 3.6 mm: 1.7 m (5.58 ft) 6 mm: 3.2 m (10.50 ft) |
| Distance DORI | Identify |
| IVS (protection périmétrique) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| Smart Object Detection | Smart abandoned object; smart missing object |
| SMD (détection humain/véhicule) | SMD 3.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. |
| Face Detection | Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face snapshot enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting and people counting in area; generating and exporting report (day/week/month/year); 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body. |
| Compression vidéo | H.265；H.264；H.264H；H.264B；MJPEG (Only supported by sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Fréquence d'images | Main stream: 2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1-25 fps)/704 × 480@(1-30 fps) third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Flux | 3 streams |
| Résolutions | 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Contrôle du débit | VBR;CBR |
| Débit vidéo | H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps |
| HDMI Output | 2560 × 1440@25/30 fps; 1920 × 1080@25/30/50/60 fps; 1280 × 720@25/30/50/60 fps |
| Jour/Nuit | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| Balance des blancs | Auto; natural; street lamp; outdoor; manual; regional custom |
| Contrôle du gain | Auto/Manual |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Éclairage intelligent | Yes |
| Defog | Yes |
| Rotation de l'image | Yes |
| Miroir | Yes |
| Masques de confidentialité | 4 areas |
| LDC | Yes |
| Micro intégré | Yes, built-in Mic |
| Compression audio | PCM; G.711a; G.711Mu; G.726; G.723 |
| Port réseau | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocoles réseau | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Interopérabilité | ONVIF (Profile S & Profile G & Profile T); CGI |
| Utilisateurs simultanés | 20 (Total bandwidth: 80 M) |
| Stockage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Navigateur | IE: IE 11 and later; Chrome: Chrome 45 and later; Firefox: Firefox 46 and later; Safari: Safari 12 and later |
| Logiciels de gestion | SmartPSS Lite; DSS; DMSS |
| Application mobile | iOS;Android |
| Cyber Security | Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| HDMI | HDMI 1.4a, type A, female plug |
| Entrée audio | 1 channel (RCA port) |
| Sortie audio | 1 channel (RCA port) |
| Entrée d'alarme | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Sortie d'alarme | 1 channel out: wet contact, 300 mA 12 VDC |
| Alimentation | 12 VDC; PoE (802.3af); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Consommation | Basic: 3.6 W (12 VDC), 4.5 W (PoE); Max.: 5.9 W (12 VDC), 6.9 W (PoE) (H.265+ WDR+ Intelligence on+IR on) |
| Température de fonctionnement | –40 °C to +60 °C (–40 °F to +140 °F) |
| Humidité de fonctionnement | ≤95% (RH), non-condensing |
| Température de stockage | –40 °C to +60 °C (–40 °F to +140 °F) |
| Humidité de stockage | ≤95% (RH), non-condensing |
| Indice de protection | IP54; IK10 |
| Matériau du boîtier | Metal |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HDBW5441RP-ASE-HDMI-0280B · Marque : Dahua
