Description et caractéristiques

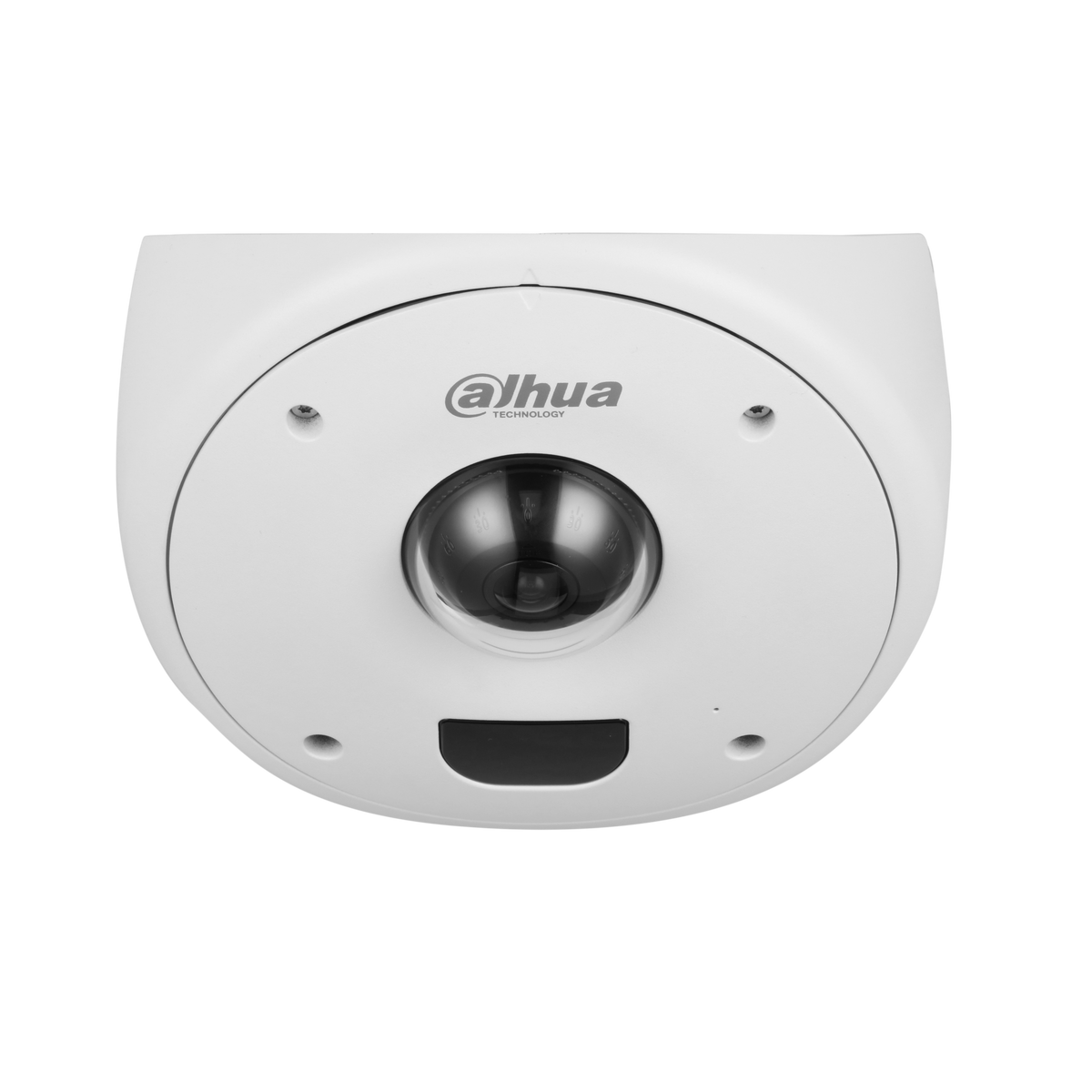

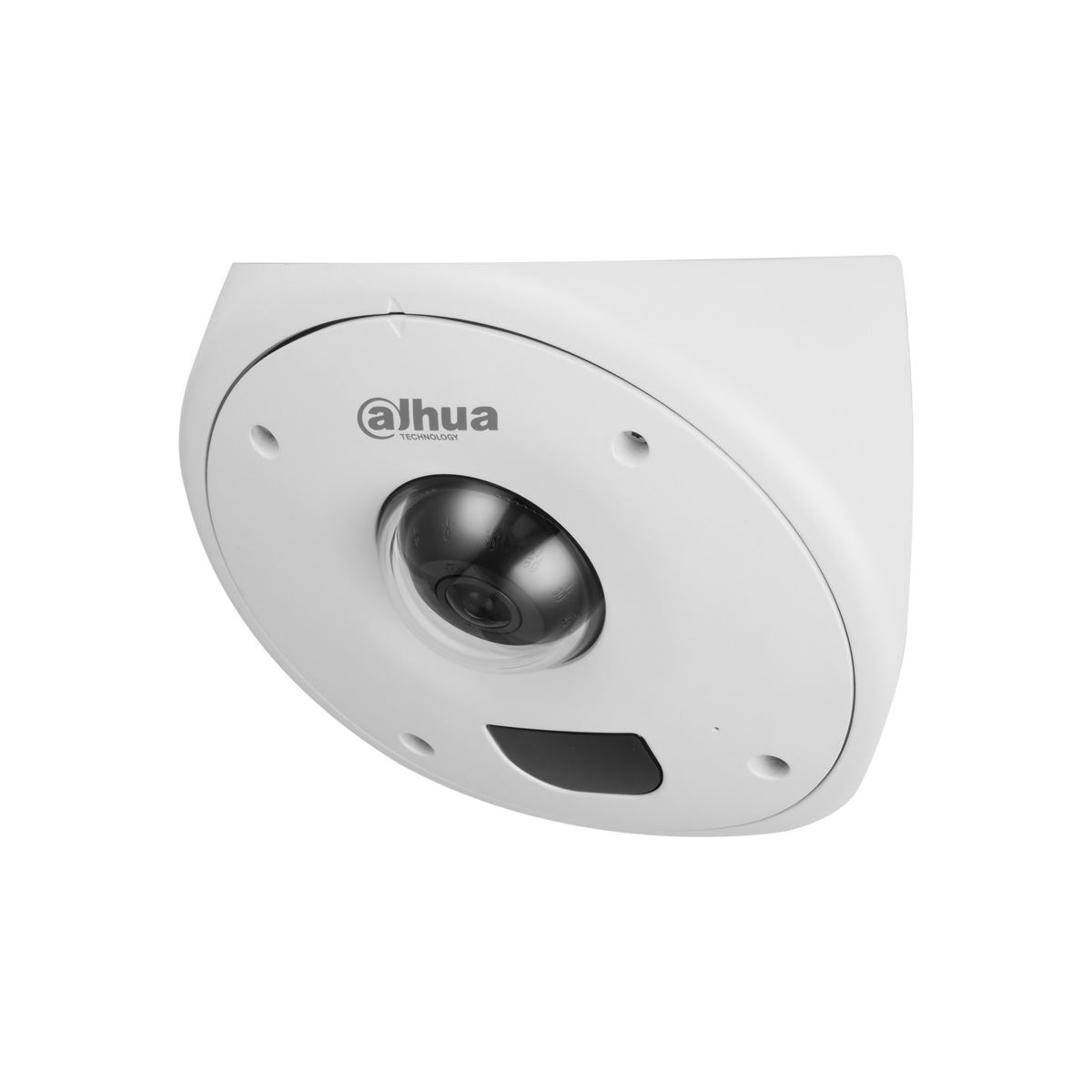

Caméra d'angle IP blanc
- 4 MP
- FF 2.5mm
- Starlight
- Fish-eye 360°
- Protection périmétrique
- IR 10m
- Entrée/Sortie audio
- Micro intégré
- 12V
- PoE
Caractéristiques principales
- Technologie de caméra : Caméra IP
- Fonctionnalités de la caméra : Starlight, Fish eye - 360 °
- Intelligence Artificielle : Protection périmétrique
- Résolution : 4 MP
- Focale Fixe : 2.5 mm
Fiche technique
| Capteur | 1/1.8”4Megapixel progressive CMOS |
|---|---|
| Résolution max. | 2688 (H) ×1520 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Balayage | Progressive |
| Obturateur électronique | Auto/Manual 1/3 s–1/100000 s |
| Sensibilité (éclairement min.) | 0.004 Lux@F2.0 (Color, 30IRE) 0.0004 Lux@F2.0 (B/W, 30IRE) 0 lux (Illuminator on) |
| Portée de l'éclairage | 10 m (32.8 ft) (monitoring distance) |
| Contrôle de l'éclairage | Auto/Manual |
| Nombre d'illuminateurs | 2 |
| Plage pan/tilt/rotation | Vertical: -10° to +10° Rotation: 0° to 355° |
| Type d'objectif | Fixed |
| Mount Type | M12 |
| Focale | 2.5 mm |
| Ouverture max. | F2.0 |
| Champ de vision | Horizontal: 135° Vertical: 90° |
| Iris Type | Fixed aperture |
| Distance mini de mise au point | 0.4 m (1.3 ft) |
| Distance DORI | Identify |
| 34.5 m (113.2 ft) | 3.4 m (11.2 ft) |
| General IVS Analytics | Abandoned object; moving object |
| Heat Map | Yes |
| Perimeter Protection | Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection |
| People Counting | Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Compression vidéo | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Fréquence d'images | Main stream: 2688 × 1520 (1 fps–25/30 fps) Sub stream: D1 (1 fps–25/30 fps) Third stream: 1080p (1 fps–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Flux | 3 streams |
| Résolutions | 2688 × 1520; 2560 × 1440; 2304 × 1296; 2016 × 1512; 1080p (1920 × 1080); UXGA(1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF(352 × 288/352 × 240) |
| Contrôle du débit | CBR; VBR |
| Débit vidéo | H.264: 32 Kbps–8192 Kbps H.265: 19 Kbps–8192 Kbps |
| Jour/Nuit | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 140 dB |
| Balance des blancs | Auto/natural/street lamp/outdoor/manual/regional custom |
| Contrôle du gain | Manual/Auto |
| Réduction du bruit | 3D NR |
| Détection de mouvement | OFF/ON (4 areas, rectangular) |
| Région d'intérêt (RoI) | Yes (4 areas) |
| Electronic Image Stabilization (EIS) | Yes |
| Éclairage intelligent | Yes (Adjust by user) |
| Defog | Yes |
| Rotation de l'image | 0°/90°/180°/270° |
| Miroir | Yes |
| Masques de confidentialité | 4 areas |
| Micro intégré | Yes |
| Compression audio | G.711a; G.711Mu; G726; |
| Network | RJ-45 (10/100 Base-T) |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS;UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interopérabilité | ONVIF (Profile S/Profile G); CGI; Milestone; Genetec; P2P |
| Scene self-adaptation (SSA) | Yes |
| Utilisateurs simultanés | 20 (Total bandwidth: 80 M.) |
| Edge Storage | FTP; NAS; Micro SD card (support max. 256 G) |
| Navigateur | IE: Versions later than IE 8 Google Firefox Apple: versions later than Safari 12 |
| Logiciels de gestion | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS, Android |
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
| RS-485 | 1 (Baud rate range: 1200 bps–115200 bps) |
| Entrée audio | 1 channel (Terminal) |
| Sortie audio | 1 channel (Terminal) |
| Entrée d'alarme | 1 channel in: 5mA 3V–5V DC |
| Sortie d'alarme | 1 channel out: 300mA 12V DC |
| Alimentation | 12V DC/PoE (802.3af) /ePOE |
| Consommation | Basic power consumption: 3W (12V DC); 3.6W (PoE) Max. power consumption (ICR + IR full intensity): 9.5W (12V DC); 11.5W (PoE) |
| Température de fonctionnement | –30°C to +60°C (–22°F to +140°F) |
| Humidité de fonctionnement | ≤95% |
| Température de stockage | –30°C to +60°C (–22°F to +140°F) |
| Ingress Protection | IP67; IK10+(50J) |
| Casing | Metal |
| Dimensions | 209.4 mm × 212.0 mm × 103.1 mm (8.2" × 8.3" × 4.1") (L × W × H) |
| Poids net | 1365 g (3.0 lb) |
| Poids brut | 1465 g (3.2 lb) |
📄 Télécharger la fiche technique (PDF)
Référence fabricant : IPC-HCBW8442P-0250B · Marque : Dahua
