Description et caractéristiques

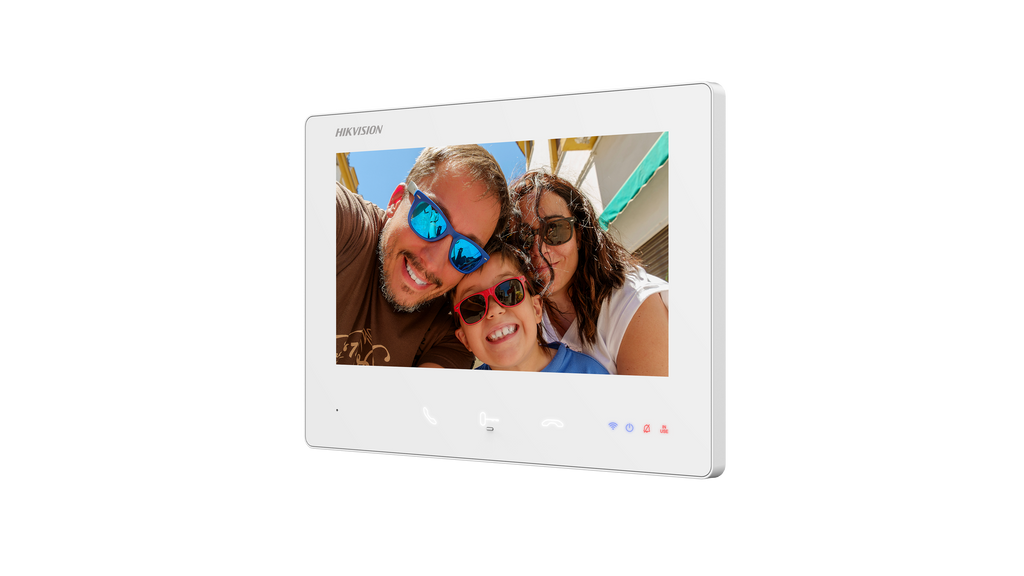

Moniteur intérieur vidéo blanc
- 7 pouces TFT tactile
- Résolution 1024×600
- 2 fils IP
- Boutons tactiles + bouton Reset
- Wi-Fi intégré 2.4 GHz
- Micro omnidirectionnel
- 200 images stockées
- 48V
Caractéristiques principales
- Type de moniteur : Ecran
- Technologie de moniteur : Moniteur 2 fils
- Taille de l'écran : Écran 7 pouces
- Alimentation : Alimentation 48 V
- Couleur : Moniteur blanc
Fiche technique
| Operating system | Embedded Linux operation system |
|---|---|
| ROM | 32 MB |
| RAM | 128 MB |
| CPU | Embedded processor |
| Screen size | 7-inch |
| Operation method | Capacitive touch screen |
| Type | Colorful TFT screen |
| Résolutions | 1024 × 600 |
| Objectif | / |
| FOV | / |
| WDR | / |
| Focal length | / |
| Audio compression standard | G.711 U G.711 A |
| Audio input | 1 Built-in omnidirectional microphone |
| Audio output | 1 Buit-in loudspeaker |
| Audio compression bitrate | 64 Kps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Event capacity | 200 captured pictures (with TF card) |
| Linked indoor extensions capacity | 3 |
| Communication protocol | TCP/IP, RTSP |
| Wi-Fi standard | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| 3G/4G standard | / |
| Zigbee | / |
| Alarm input | 1 |
| TAMPER | / |
| RS-485 | / |
| USB | / |
| TF card | Max to 128 G, SD 2.0 or lower version |
| Alarm output | / |
| Power supply input | 48V，powered by DS-KAD7060EY or DS-KAD7061EY |
| Two-wire IP interface | 2, 1 for input 1 for output |
| Button | 3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button（Reset） |
| Installation | Surface mounting |
| Indicator | 4（Wifi、Power、Mute、In use） |
| Protective level | / |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimensions | 190.2 mm × 138.2 mm × 20 mm (7.5" × 5.4" × 0.8") |
| Batterie | / |
| Power supply | 48V，Powered by DS-KAD7060EY or DS-KAD7061EY |
| Application environment | Indoor |
| Power consumption | ≤ 5 W |
| Language | English, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese |
Référence fabricant : DS-KH7300EY-WTE2/White · Marque : Hikvision
