Description et caractéristiques

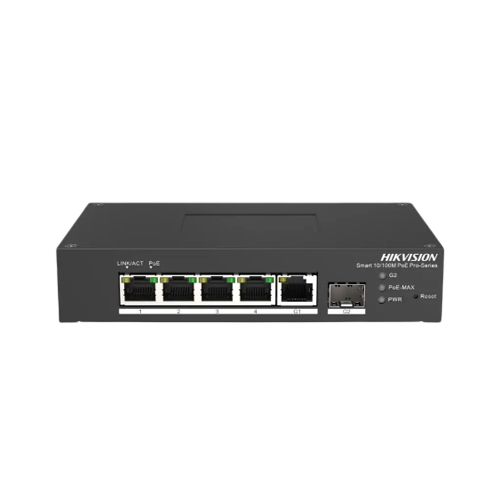

Switch Gigabit manageable POE
- 4 ports PoE
- 1 port fibre
- 1 port gigabit
- 10/100 Mbps
- Budget POE 60 W
Caractéristiques principales
- Type de switch : Switch manageable, Switch Gigabit, Switch POE
- Nombre de ports du switch : 6 ports
- Budget POE max : 60 W
- Nombre de ports POE Switch : 4 ports POE
- Nombre de ports fibre : 1 port fibre
Fiche technique
| Shell | Metal material |
|---|---|
| Poids net | 0.4 kg (0.8 lb) |
| Poids brut | 1.0 kg (2.2 lb) |
| Dimensions (W × H × D) | 158.00 mm × 101.20 mm × 31.60 mm (6.20'' × 3.90'' × 1.20'') |
| Température de fonctionnement | -30 °C to 65 °C (-22 °F to 149 °F) |
| Température de stockage | -40 °C to 85 °C (-40 °F to 185 °F) |
| Humidité de fonctionnement | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Alimentation | 48VDC, 1.36A |
| Installation Mode | Desk-Mounted,Rail |
| Max. Power Consumption | 65 W |
| Power Consumption in Idle | 5 W |
| Surge Protection | 6 kV |
| Ports | 4 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port |
| MAC Address Table | 2 K |
| Switching Capacity | Whole-Device Performance: 14 Gbps Port Performance: 4.8 Gbps |
| Packet Forwarding Rate | Whole-Device Performance: 10.42 Mpps Port Performance: 3.57 Mpps |
| Internal Cache | 1 Mbits |
| Long Range | Ports 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| Port Isolation | Ports 1 to 4: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 4: auto detect and restart the cameras that do not respond. |
| QoS | QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP, WRR priority schedule mode. |
| VLAN | VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. |
| Loop Prevention | Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP. |
| Port Rate-Limiting | Port rate-limiting is used for port bandwidth adjustment to prevent network congestion. |
| Storm Control | Storm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication. Support port rate limiting based on broadcast, multicast, and unknown unicast packets. |
| DHCP Snooping | DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default. |
| ACL | Support ACL definitions based on source/destination MAC address, source/destination IP address, IP protocol type. Support ACL application on ports. Support IPv4 ACL and MAC ACL configurations. Support inbound ACLs. |
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port | PoE: Ports 1 to 4 |
| Max. Port Power | 30 W |
| PoE Power Budget | 60 W |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006) |
Référence fabricant : DS-3T1306P-SI/HS · Marque : Hikvision
