Description et caractéristiques
Switch 4 ports
- POE
- Température : 0°C à 40°C
- 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
- Budget POE 60W
Caractéristiques principales
- Type de switch : Switch POE
- Nombre de ports du switch : 4 ports
- Budget POE max : 60 W
- Nombre de ports POE Switch : 4 ports POE
- Type de produit : Switch
Fiche technique
| Shell | Metal material, fan-free design |
|---|---|
| Poids net | 0.26 kg (0.573 lb) |
| Poids brut | 0.75 kg (1.65 lb) |

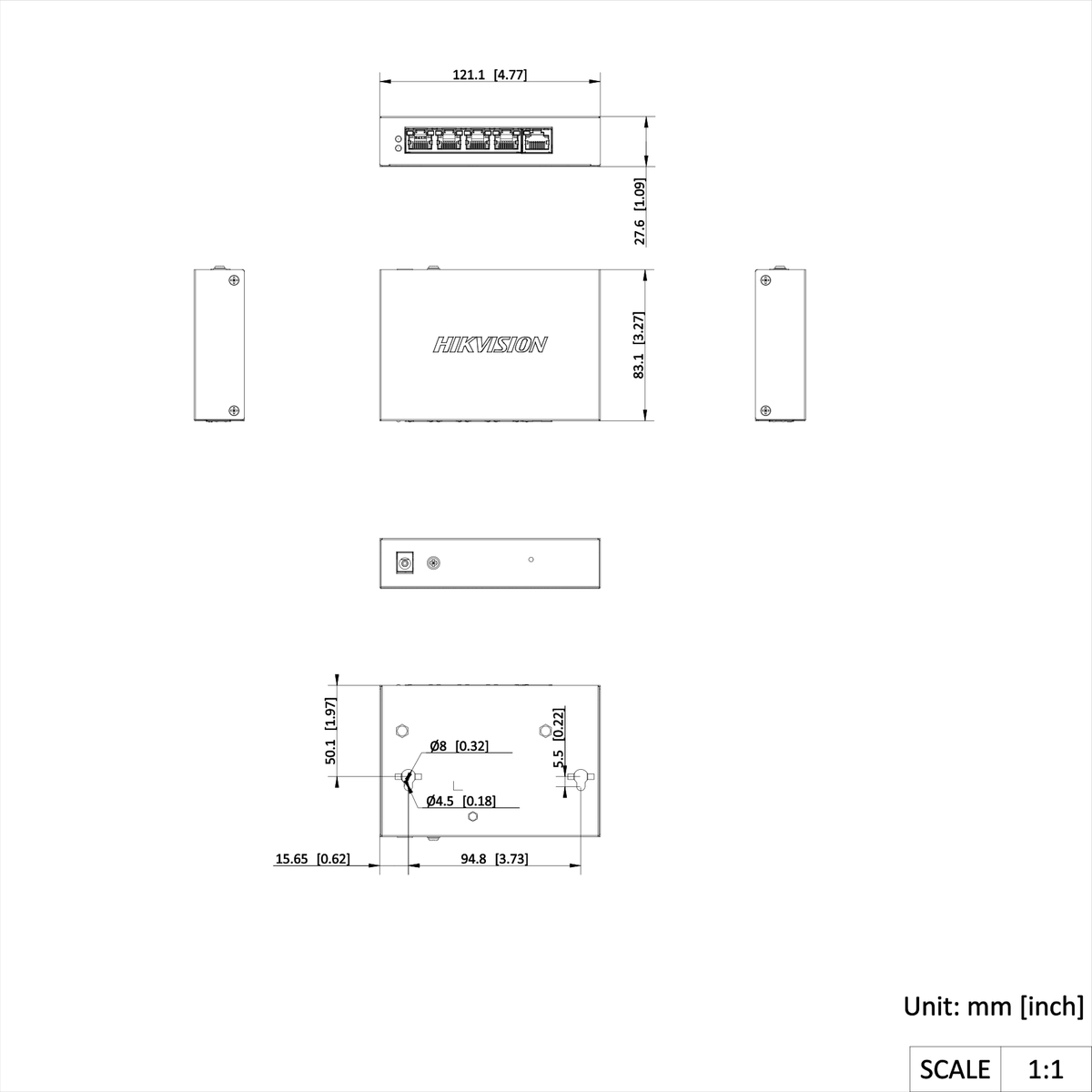

| Dimensions (W × H × D) | 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'') |
| Température de fonctionnement | 0 °C to 40 °C (32 °F to 104 °F) |
| Température de stockage | -40 °C to 85 °C (-40 °F to 185 °F) |
| Humidité de fonctionnement | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Alimentation | 54VDC, 0.92A |
| Installation Mode | Desk-Mounted,Wall-Mounted |
| Max. Power Consumption | 50 W |
| Power Consumption in Idle | 5 W |
| Surge Protection | 6 kV |
| Ports | 4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port |
| MAC Address Table | 2 K |
| Switching Capacity | 1.2 Gbps |
| Packet Forwarding Rate | 0.89 Mpps |
| Internal Cache | 768 Kbits |
| Port Isolation | Ports 1 to 4: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 4: auto detect and restart the cameras that do not respond. |
| Link Aggregation | Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 1 aggregation groups. |
| Loop Prevention | Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP. |
| VLAN | VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN. |
| Long Range | Ports 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. |
| VIP Port | Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient. |
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) |
| PoE Port | PoE: Ports 1 to 4 |
| Max. Port Power | 30 W |
| PoE Power Budget | 45 W |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |

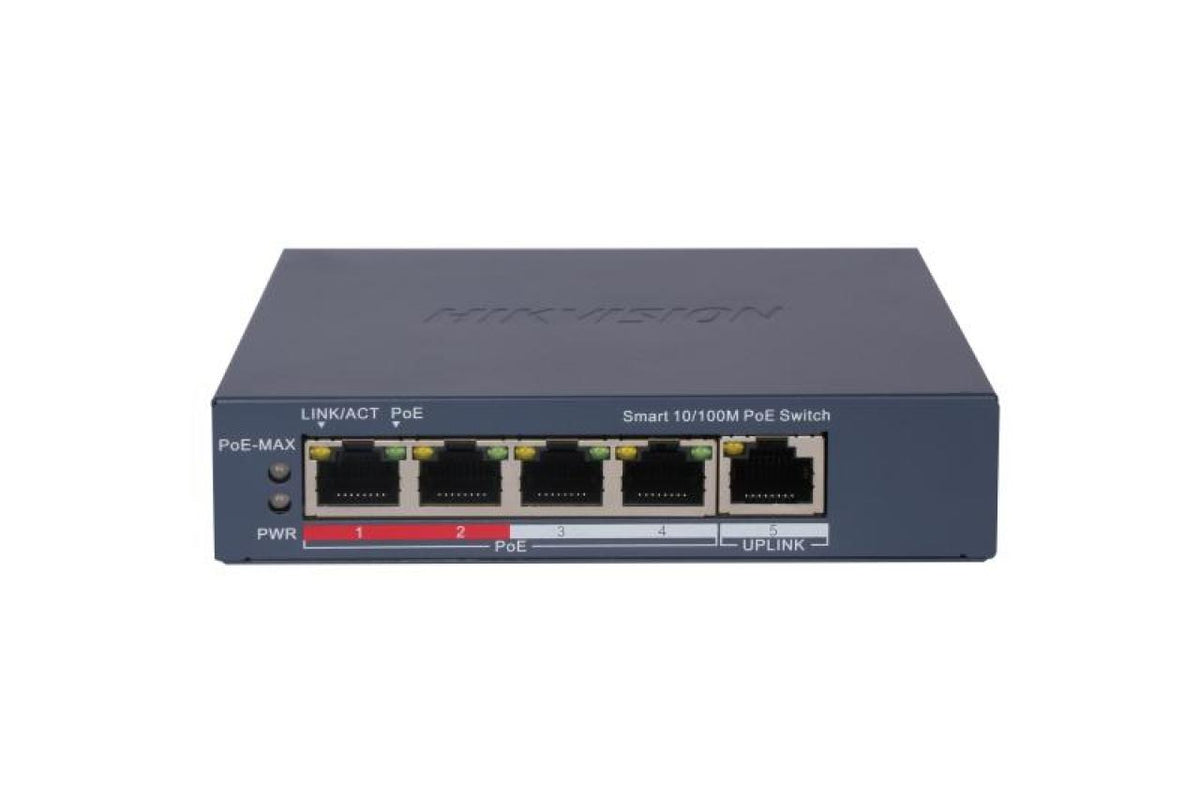

Référence fabricant : DS-3E1105P-EI V2 · Marque : Hikvision
